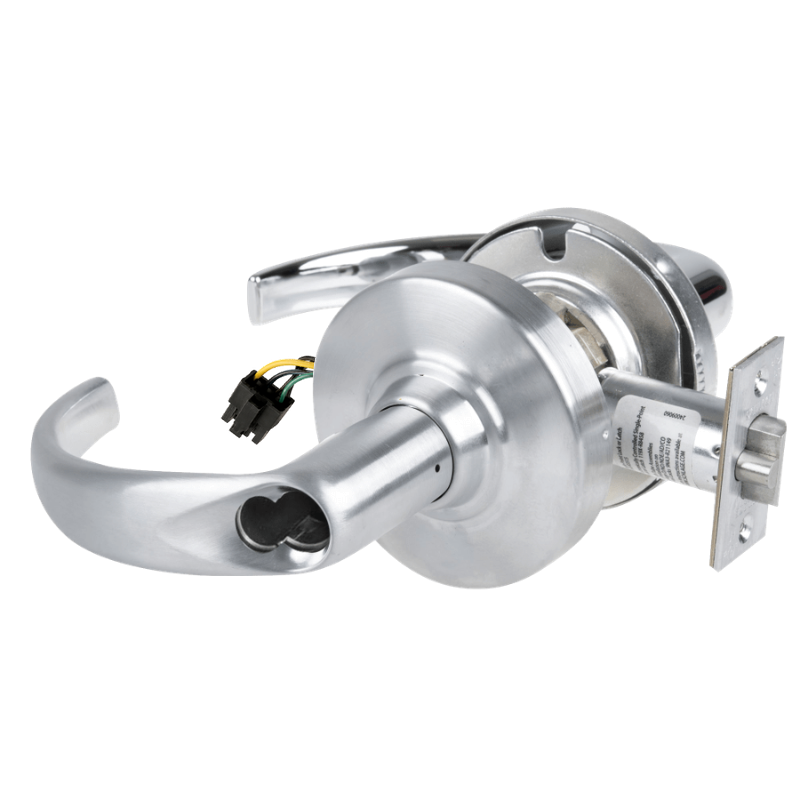

Schlage ND80BD-EU-SPA Cylindrical Electrified Storeroom Lock, Sparta Lever, 12-24V VDC, Fail Secure, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EU-SPA Cylindrical Electrified Storeroom Lock combines heavy-duty Grade 1 performance with remote access control convenience for commercial openings. This electrified storeroom lock features the Sparta lever design, 12-24V VDC operation, and fail secure functionality to help maintain security during power loss. Built with SFIC prep less core construction, it is ready for small format interchangeable core applications while allowing core selection separately. The lock is configured with a 2-3/4 inch backset, a 4-7/8 inch strike, and a non handed design for easier field application. The ND80BD-EU platform is part of Schlage’s durable ND Series cylindrical lock line for demanding institutional and commercial use.

Features

• ND80BD-EU electrified storeroom lock function supports controlled access in commercial and institutional openings.
• Sparta lever trim provides a clean lever design used within the Schlage ND Series platform.
• 12-24V VDC operation offers flexible low-voltage compatibility for access control systems.
• Fail secure operation keeps the outside lever locked during power loss for maintained security.
• SFIC prep less core configuration is prepared for a small format interchangeable core, with the core supplied separately.
• 2-3/4 inch backset fits standard door preparations requiring the longer commercial backset.
• 4-7/8 inch strike is included for the specified frame strike preparation.
• Grade 1 construction meets heavy-duty commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80BD-EU electrified storeroom function is designed for openings that need remote release while maintaining a secure outside lever when power is removed. In normal use, the inside lever remains free for egress, while the outside lever is electrically controlled. With fail secure operation, the outside lever stays locked if power is interrupted, making this function suitable for security-sensitive applications.

• Outside lever is locked and unlocked by a solenoid.
• Inside lever always unlocked.
• Outside lever remains locked in the event of power failure.
• Latchbolt operated by lever from either side, except when outer lever is locked by electric control.

Included Components

This configuration includes the Schlage ND80BD-EU-SPA cylindrical electrified storeroom lock body with Sparta lever trim, a 2-3/4 inch backset latch, and a 4-7/8 inch strike. The lock is SFIC prep less core, so the small format interchangeable core is not included and must be supplied separately.
