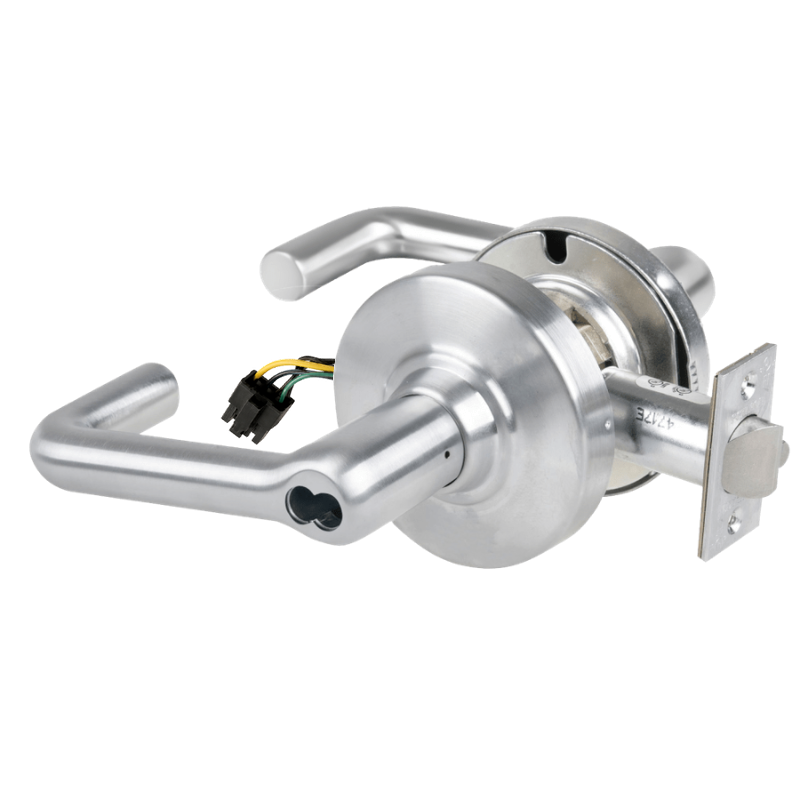

Schlage ND80BD-EU-TLR Cylindrical Electrified Storeroom Lock, Tubular Lever, 12-24V VDC, Fail Secure, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-EU-TLR Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 solution built for demanding commercial openings that require controlled access and dependable performance. This configuration combines a tubular lever design with 12-24V VDC operation and fail secure functionality, making it well suited for access control applications where the outside lever remains locked during power loss. It is supplied as an SFIC prep less core lock and includes a 2-3/4 inch backset with a 4-7/8 inch strike for standard commercial door prep. The non handed design also helps simplify installation and inventory management across multiple openings.

Features

• ND80BD-EU-TLR is an electrified cylindrical storeroom lock designed for commercial access control applications.
• The tubular lever trim provides a clean, familiar lever style for institutional and commercial doors.
• 12-24V VDC operation supports low-voltage electrified locking setups.
• Fail secure function keeps the outside lever locked when power is removed.
• SFIC prep less core construction is prepared for a small format interchangeable core, with core supplied separately.
• The 2-3/4 inch backset fits common commercial door preparations requiring the longer backset option.
• A 4-7/8 inch strike is included for compatible frame preparation.
• Grade 1 construction meets heavy-duty commercial performance requirements.
• The non handed design allows the lock to be used on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed for openings that need remote release while maintaining secure exterior control. In fail secure mode, the outside lever stays locked when power is off, and electrical power is used to momentarily unlock the outside lever for authorized entry. The inside lever remains available for free egress.

• Outside lever locked by key and unlocks by electric release.
• Inside lever always free for immediate egress.
• Fail secure.

Included Components

This lock is supplied as an SFIC prep less core cylindrical lock with a 2-3/4 inch backset and 4-7/8 inch strike. The interchangeable core is not included.
