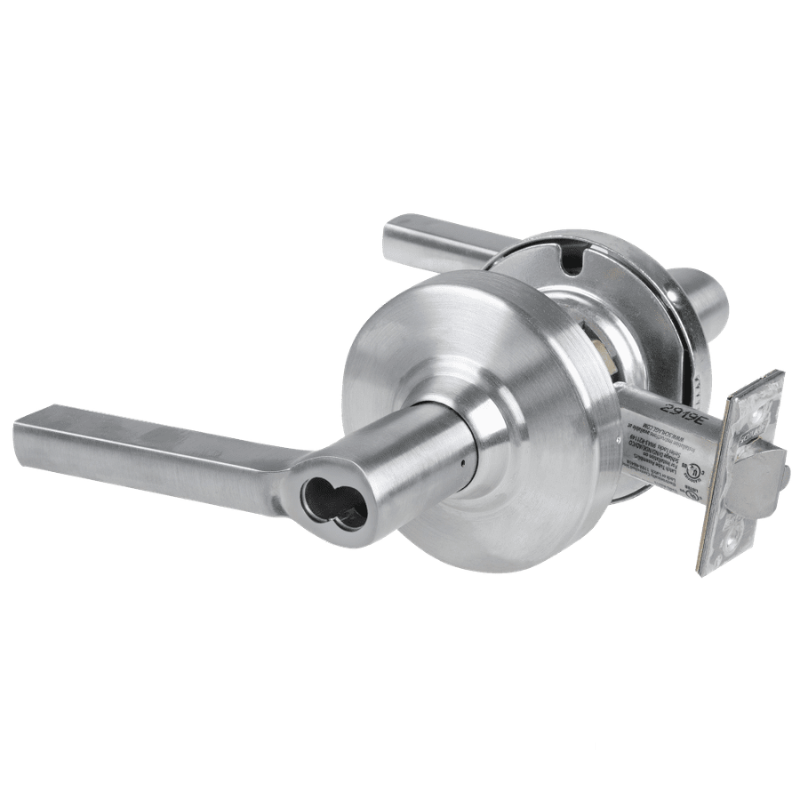

Schlage ND80BD-LAT Cylindrical Storeroom Lock, Latitude Lever, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-LAT Cylindrical Storeroom Lock is a heavy-duty Grade 1 lock built for high-traffic commercial openings that require dependable security and long service life. This configuration includes the Latitude lever, SFIC prep less core construction, a 2-3/4 inch backset, and a 4-7/8 inch strike for compatibility with standard commercial door preparations. Designed as a non handed lock, it simplifies installation while delivering the storeroom function needed for controlled access. As part of the Schlage ND Series, the ND80BD-LAT combines strong cylindrical lock performance with the flexibility of small format interchangeable core preparation.

Features

• ND80BD-LAT cylindrical storeroom lock function is designed for commercial openings that require key-controlled outside access.
• Latitude lever trim provides a modern straight-lever design suited for institutional, office, and public building applications.
• SFIC prep less core configuration is prepared for a small format interchangeable core and is supplied less core.
• 2-3/4 inch backset supports standard commercial frame and door preparations where a longer backset is required.
• 4-7/8 inch strike is included for proper alignment with compatible frame conditions.
• Grade 1 construction meets the highest ANSI/BHMA grade for cylindrical locks in demanding applications.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This storeroom function keeps the outside lever rigid at all times and requires a key for entry from the exterior side, while the inside lever remains free for immediate egress. It is commonly used on doors where security is needed but occupants must be able to exit without delay.

• Outside lever rigid.
• Entrance by key only.
• Inside lever always unlocked.

Included Components

This Schlage ND80BD-LAT lock is supplied with the Latitude lever trim, SFIC prep less core chassis, 2-3/4 inch backset, and 4-7/8 inch strike. Cylinder core is not included.
