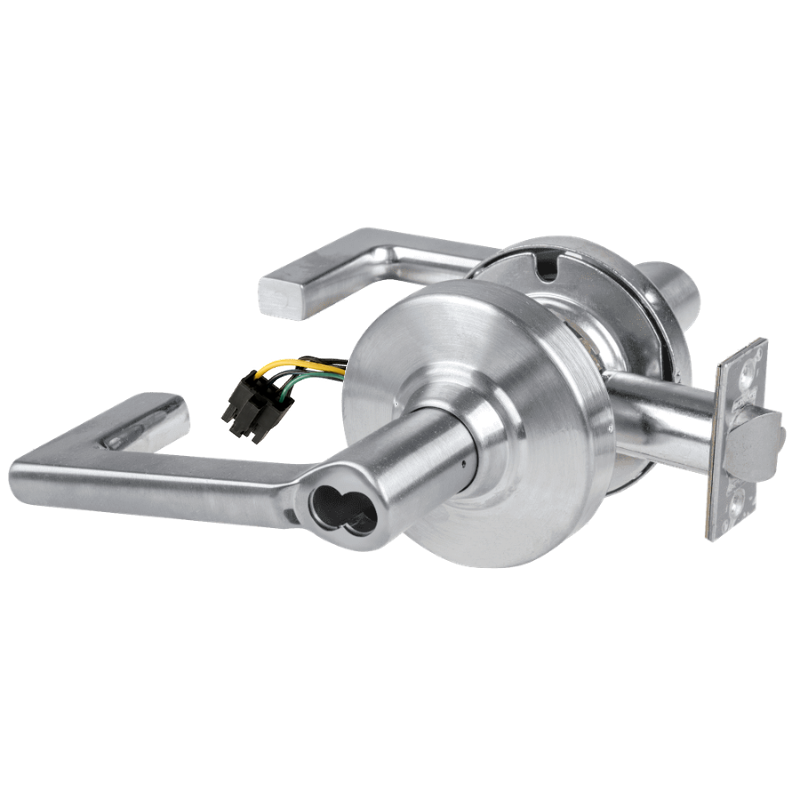

Schlage ND80BD-LON-RX Cylindrical Storeroom Lock, Longitude Lever, Request to Exit, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-LON-RX Cylindrical Storeroom Lock is a heavy-duty Grade 1 lockset built for high-traffic commercial openings that require dependable security and controlled access. This configuration includes the Longitude lever design, Request to Exit capability, and SFIC prep less core construction for use with a small format interchangeable core supplied separately. It is furnished with a 2-3/4 inch backset and 4-7/8 inch strike, and its non handed design helps simplify installation and field application. As part of the Schlage ND Series, this cylindrical storeroom lock is engineered for strength, durability, and consistent performance.

Features

• ND80BD storeroom function provides secure exterior access control for commercial door openings.
• Longitude lever trim offers a modern lever design within the Schlage ND Series cylindrical lock platform.
• Request to Exit monitoring capability supports applications where egress signaling is required.
• SFIC prep less core configuration is prepared for a small format interchangeable core that is not included.
• 2-3/4 inch backset supports standard commercial door preparation requirements.
• 4-7/8 inch strike is included for proper frame engagement.
• Grade 1 construction is designed for demanding institutional, commercial, and high-use environments.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80BD storeroom function is designed to keep the outside lever rigid while allowing authorized entry by key. From the inside, free egress is maintained at all times for life safety. The RX Request to Exit option adds switch monitoring to signal lever operation from the inside, making it useful for access control and alarm interface applications.

• Outside lever fixed.
• Entrance by key only.
• Inside lever always unlocked.
• RX - Request to exit switch monitors inside lever operation.

Included Components

This Schlage ND80BD-LON-RX lock is supplied with a 2-3/4 inch backset latch and a 4-7/8 inch strike. The SFIC prep less core configuration means the small format interchangeable core is not included and must be ordered separately.
