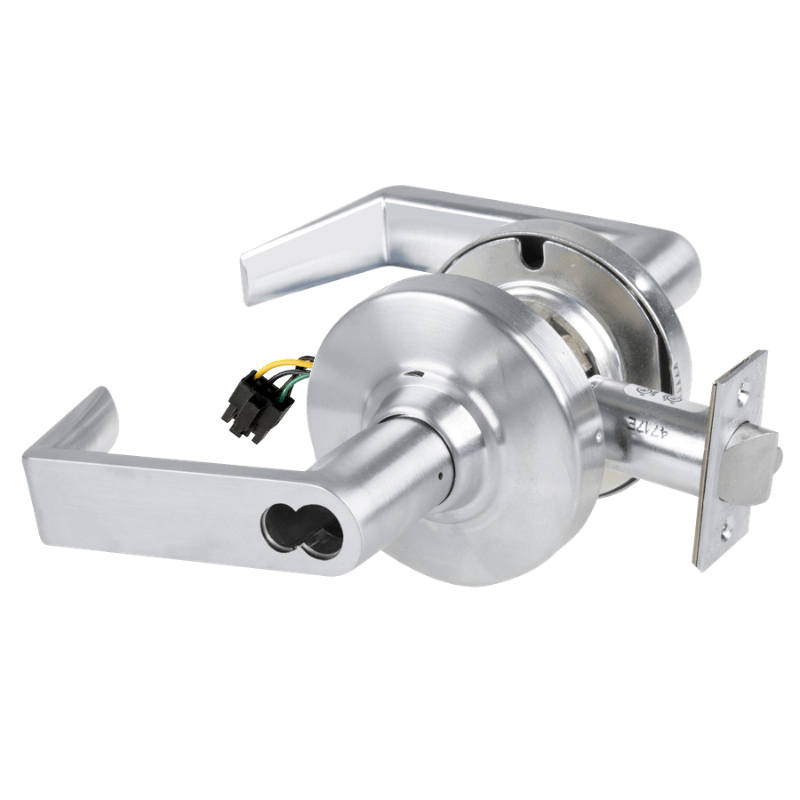

Schlage ND80BD-RHO-RX Cylindrical Storeroom Lock, Rhodes Lever, Request to Exit, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-RHO-RX Cylindrical Storeroom Lock combines heavy-duty Grade 1 performance with the clean look of the Rhodes lever for demanding commercial openings. This non handed lock is built on the ND Series platform and includes request to exit capability for access control applications. It is supplied as SFIC prep less core, making it ready for small format interchangeable core systems while allowing the core to be ordered separately. With a 2-3/4 inch backset and 4-7/8 inch strike, the Schlage ND80BD-RHO-RX cylindrical storeroom lock is designed for strength, flexibility, and reliable operation in high-traffic environments.

Features

• ND80BD storeroom function provides outside lever rigid at all times and inside lever always free for safe egress.
• Rhodes lever design offers a modern straight return style suited for commercial applications.
• Request to exit monitoring supports electrified and access control door hardware setups.
• SFIC prep less core configuration is prepared for a small format interchangeable core, with no core included.
• 2-3/4 inch backset fits standard commercial door preparations requiring the longer backset option.
• 4-7/8 inch strike provides the specified strike size for frame compatibility.
• Grade 1 construction meets ANSI/BHMA requirements for heavy-duty commercial use.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80BD storeroom function is intended for doors that must remain locked from the outside while always allowing free exit from the inside. The RX request to exit feature adds latch retraction signaling when the inside lever is operated, making it suitable for integration with access control and monitoring systems.

• Outside lever rigid.
• Entrance by key only.
• Inside lever always unlocked.
• Inside lever actuates switch.
• Deadlocking latchbolt by lever either side.

Included Components

This lock is supplied in SFIC prep less core format, so the small format interchangeable core is not included. It is configured with the Rhodes lever, 2-3/4 inch backset, 4-7/8 inch strike, and RX request to exit feature as specified.
