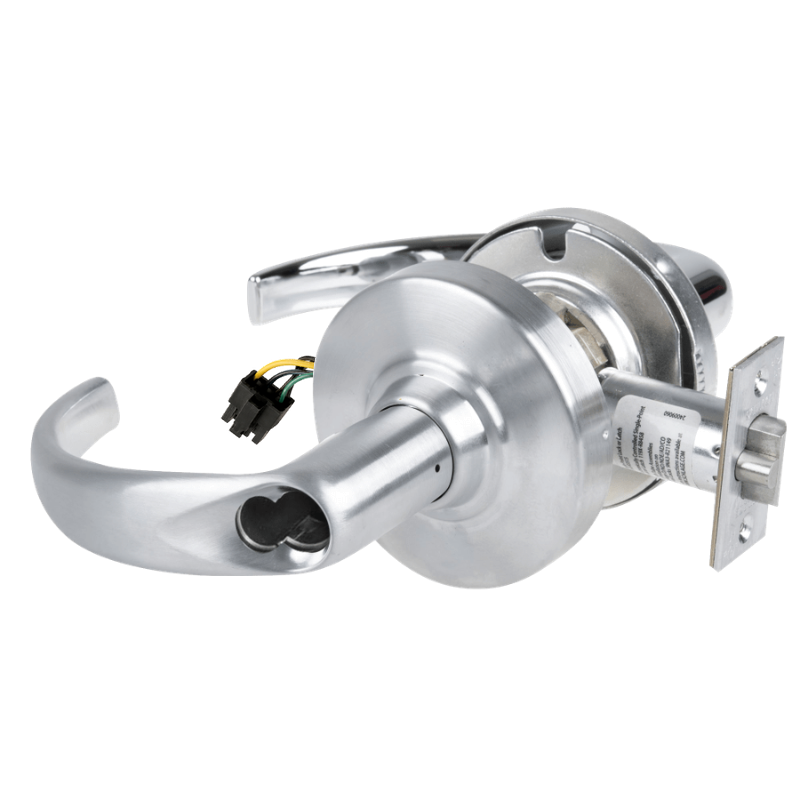

Schlage ND80BD-SPA-RX Cylindrical Storeroom Lock, Sparta Lever, Request to Exit, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-SPA-RX Cylindrical Storeroom Lock with Sparta lever is a heavy-duty Grade 1 cylindrical lock built for demanding commercial openings that require security and controlled access. This ND80BD-SPA-RX configuration includes Request to Exit capability, SFIC prep less core construction, a 2-3/4 inch backset, and a 4-7/8 inch strike for compatibility with standard commercial door preparations. Designed as a non handed lock, it simplifies installation while maintaining reliable storeroom function performance. As part of the Schlage ND Series, this cylindrical storeroom lock is engineered for strength, durability, and consistent operation in high-traffic institutional, retail, and commercial environments.

Features

• ND80BD storeroom function provides secure outside access control for commercial openings.
• SPA trim design includes the Schlage Sparta lever style.
• RX Request to Exit capability supports access control and egress applications.
• SFIC prep less core configuration is prepared for a small format interchangeable core supplied separately.
• 2-3/4 inch backset fits common commercial door preparations.
• 4-7/8 inch strike is included for the specified frame condition.
• Grade 1 construction meets high-use commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.
• Cylindrical lock chassis supports durable operation in high-traffic applications.

Functional Details

This storeroom function keeps the outside lever rigid at all times and requires a key for entry, while the inside lever remains free for immediate egress. The RX Request to Exit feature adds switch monitoring to signal lever operation for access control integration. The SFIC prep less core design means the lock is prepped to accept a small format interchangeable core, but the core is not included.

• Outside lever rigid.
• Latchbolt retracted by key outside or by inside lever.
• Inside lever always free for immediate egress.

Arm Type Details

This product does not include a door closer arm or arm configuration. It is a cylindrical lockset with a non handed chassis, allowing the same lock body to be used for either door hand without field handing changes.

Included Components

This lock is supplied in SFIC prep less core form, meaning the small format interchangeable core is not included. The listed 4-7/8 inch strike is part of the specified lock configuration.
