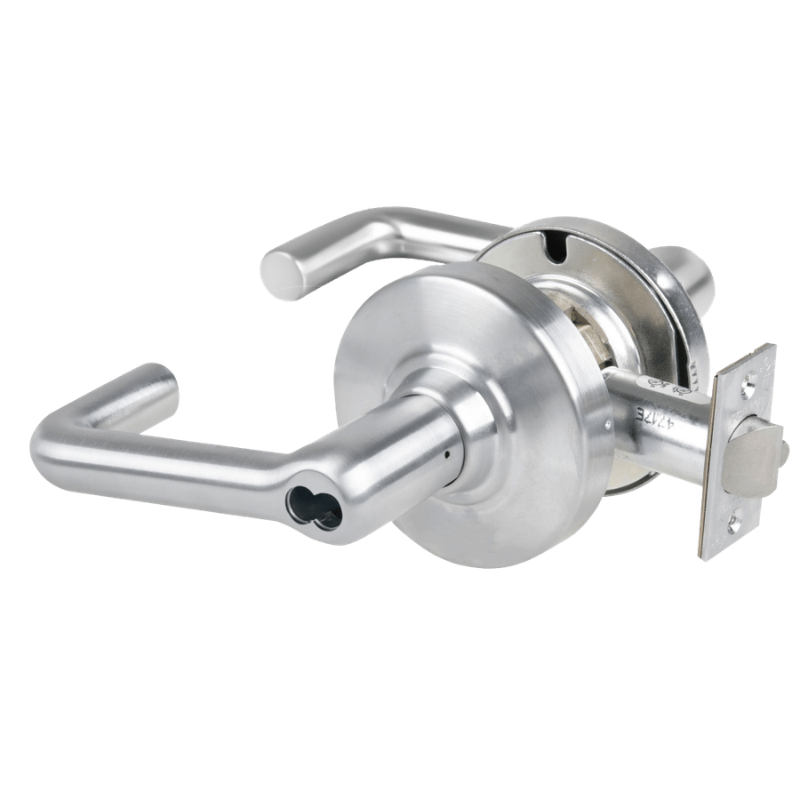

Schlage ND80BD-TLR Cylindrical Storeroom Lock, Tubular Lever, SFIC Prep Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80BD-TLR Cylindrical Storeroom Lock is a heavy-duty Grade 1 lock built for commercial openings that need dependable security and long service life. This configuration combines the ND80BD storeroom function with a tubular lever design, SFIC prep less core construction, a 2-3/4 inch backset, and a 4-7/8 inch strike for standard commercial door prep. Its non handed design helps simplify installation and stocking, while the ND Series platform is known for strength, durability, and consistent performance in demanding institutional, retail, and office environments.

Features

• ND80BD storeroom function provides secure outside access control for commercial applications.
• Tubular lever trim offers a familiar cylindrical lock format for standard door preparations.
• SFIC prep less core configuration is prepared to accept a small format interchangeable core that is supplied separately.
• 2-3/4 inch backset matches common commercial door requirements.
• 4-7/8 inch strike is included for the specified frame preparation.
• Grade 1 construction meets high-performance commercial hardware standards.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80BD storeroom function is designed to keep the outside lever rigid at all times, requiring a key for entry from the exterior while allowing free egress from the inside. This makes it a practical choice for rooms that must remain locked from the corridor side without restricting exit.

• Outside lever rigid at all times.
• Entrance by key only.
• Inside lever always unlocked.

Included Components

This Schlage ND80BD-TLR lock includes the cylindrical lock body with tubular lever trim and a 4-7/8 inch strike. The SFIC prep less core configuration is supplied less core, so the small format interchangeable core must be ordered separately.
