Description

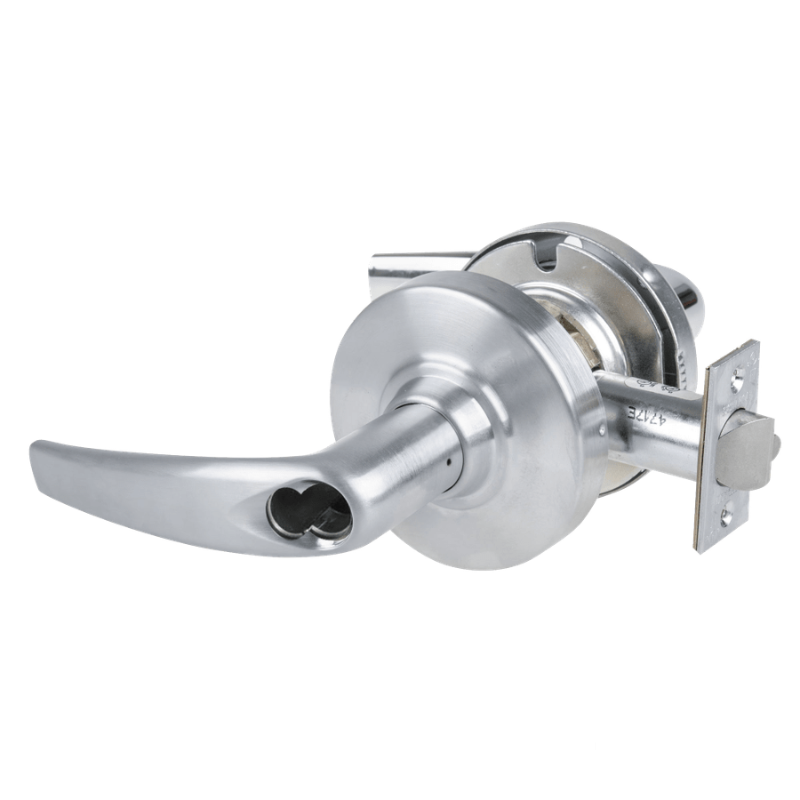

Schlage ND80JD-ATH Cylindrical Storeroom Lock, Athens Lever, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80JD-ATH Cylindrical Storeroom Lock is a heavy-duty Grade 1 lockset built for demanding commercial openings. This configuration includes the Athens lever, Schlage FSIC full sized interchangeable core prep, and is supplied less core so you can key the opening to your facility requirements. It features a 2-3/4 inch backset and a 4-7/8 inch strike for compatibility with standard commercial door and frame applications. Designed as a non handed lock, the ND80JD-ATH offers flexible installation and dependable storeroom security backed by the proven performance of Schlage ND Series cylindrical locks.
Features
- ND80JD storeroom function provides secure outside access control for commercial openings.
- ATH Athens lever trim offers a clean, modern lever design.
- Prepared for a Schlage FSIC full sized interchangeable core for convenient key system management.
- Supplied less core to allow separate core selection and keying.
- Built with a 2-3/4 inch backset for standard commercial door preparation.
- Includes a 4-7/8 inch strike for frame compatibility.
- Grade 1 construction supports high-use institutional and commercial applications.
- Non handed design allows installation on either right-hand or left-hand doors.
- Cylindrical lock chassis supports durable performance and serviceability.
Functional Details
The ND80JD storeroom function keeps the outside lever rigid at all times, requiring a key for entry from the outside while allowing free egress from the inside. This makes it a practical choice for supply rooms, service areas, and other doors that need controlled access without restricting exit.
- Outside lever rigid at all times.
- Entrance by key only.
- Inside lever always unlocked for immediate egress.
Included Components
This lock is furnished less core and is prepared to accept a Schlage FSIC full sized interchangeable core. The assembly includes the cylindrical lockbody, Athens lever trim, and 4-7/8 inch strike for a 2-3/4 inch backset application.
Product Specifications
| Manufacturer | Schlage |
| Series | ND Series |
| Model | ND80JD-ATH |
| Product Type | Cylindrical Storeroom Lock |
| Lever Design | Athens Lever |
| Core Type | Schlage FSIC Full Sized Interchangeable Core |
| Core Included | Less Core |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Grade | Grade 1 |
| Handing | Non Handed |
| ANSI Number | F86 |
| UL Listing Type | UL listed for 3-hour fire door |
| BAA Qualified | Yes |
| Origin | Made in USA of domestic and imported materials |
| Unit of Measure | Each |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
Technical Specifications
| Lock Function | ND80JD |
| ANSI Function Number | F86 |
| ANSI/BHMA Grade | Grade 1 |
| Door Thickness Range | 1-3/8 Inch to 2-1/8 Inch |
| Backset Dimension | 2-3/4 Inch |
| Strike Size | 4-7/8 Inch |
| Latch Front | 1-1/8 Inch x 2-1/4 Inch |
| Cross Bore | 2-1/8 Inch |
| Edge Bore | 1 Inch |
| Lever Style | ATH Athens |
| Core Prep | FSIC Full Sized Interchangeable Core |
| Handing | Non Handed |
| Fire Rating | 3 Hour |
| Cylinder Type | Less Core |
| Latchbolt Throw | 1/2 Inch |
