Description

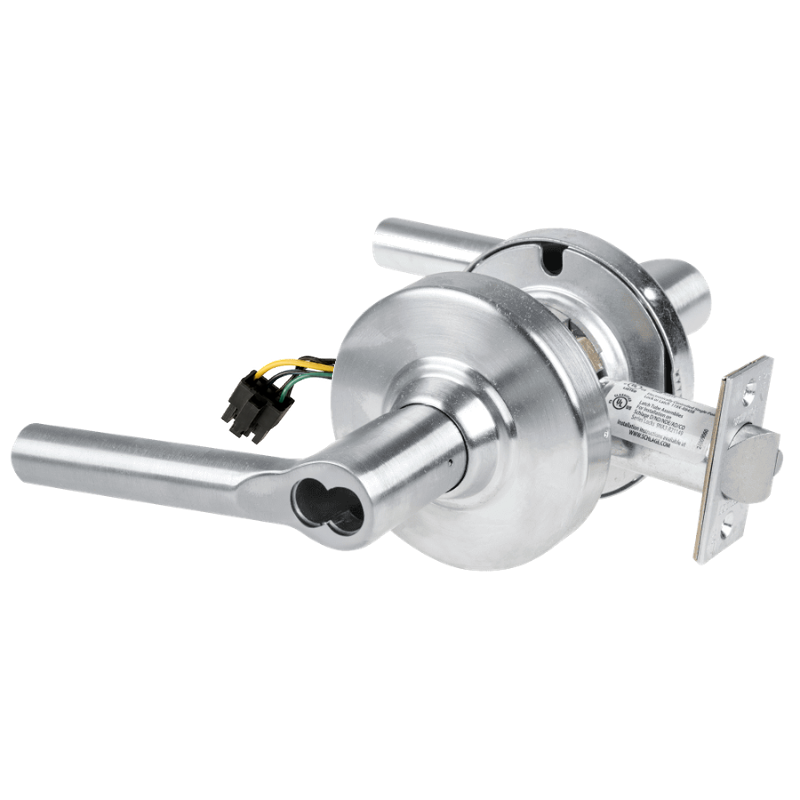

Schlage ND80JD-BRW-RX Cylindrical Storeroom Lock, Broadway Lever, Request to Exit, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80JD-BRW-RX Cylindrical Storeroom Lock with Broadway Lever is a heavy-duty Grade 1 lock built for high-traffic commercial openings that require dependable security and controlled access. This ND80JD-BRW-RX function includes Request to Exit capability and is designed for use with a Schlage FSIC Full Sized Interchangeable Core, supplied less core for keying flexibility. It is configured with a 2-3/4 inch backset and a 4-7/8 inch strike for standard commercial door prep compatibility. The non handed design simplifies installation, while the cylindrical storeroom function delivers durable performance backed by the trusted Schlage ND Series platform.
Features
- ND80JD-BRW-RX cylindrical storeroom lock is designed for commercial applications that need secure outside access control and free egress from the inside.
- Broadway lever trim provides a clean, modern lever design on the Schlage ND Series chassis.
- Request to Exit capability supports access control applications where egress signaling is required.
- Prepared for a Schlage FSIC full sized interchangeable core and supplied less core to allow facility-specific keying.
- Configured with a 2-3/4 inch backset for compatibility with common commercial door preparations.
- Includes a 4-7/8 inch strike to match the specified frame preparation.
- Grade 1 construction provides the highest ANSI/BHMA performance classification for cylindrical locks.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
The storeroom function keeps the outside lever rigid at all times and requires a key for entry, while the inside lever remains free for immediate egress. On the ND80JD-BRW-RX, the Request to Exit feature adds monitoring capability for electrified or controlled openings where an exit signal is needed when the inside lever is operated.
- Outside lever rigid.
- Entrance by key only.
- Inside lever always unlocked.
- RX switch monitors inside lever rotation.
Included Components
This lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. It is also specified with a 4-7/8 inch strike and a 2-3/4 inch backset.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80JD-BRW-RX |
| Lock Type | Cylindrical Lock |
| Function | Storeroom Lock |
| Lever Design | Broadway Lever |
| Request to Exit | Yes, RX switch |
| Core Type | Schlage FSIC Full Sized Interchangeable Core |
| Core Included | Less Core |
| Handing | Non Handed |
| Grade | ANSI/BHMA Grade 1 |
| ANSI Number | F86 |
| UL Listing Type | UL Listed for 3-hour fire door |
| Origin | Made in Mexico with U.S. and global components |
| Unit of Measure | Each |
| BAA Qualified | No |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
Technical Specifications
| Backset | 2-3/4 in. |
|---|---|
| Strike | 4-7/8 in. |
| Latch Bolt Throw | 1/2 in. |
| Deadlocking Latch | Yes |
| Door Thickness Range | 1-3/8 in. to 2-1/8 in. |
| Crossbore | 2-1/8 in. |
| Edge Bore | 1 in. |
| Rose Diameter | 3-7/16 in. |
| Fire Rating | 3 Hour |
| Cycle Test | 3,100,000 cycles |
| Function Number | 80 |
| Lever Rotation Monitoring | RX switch monitors inside lever rotation |
| Handing | Non handed |
