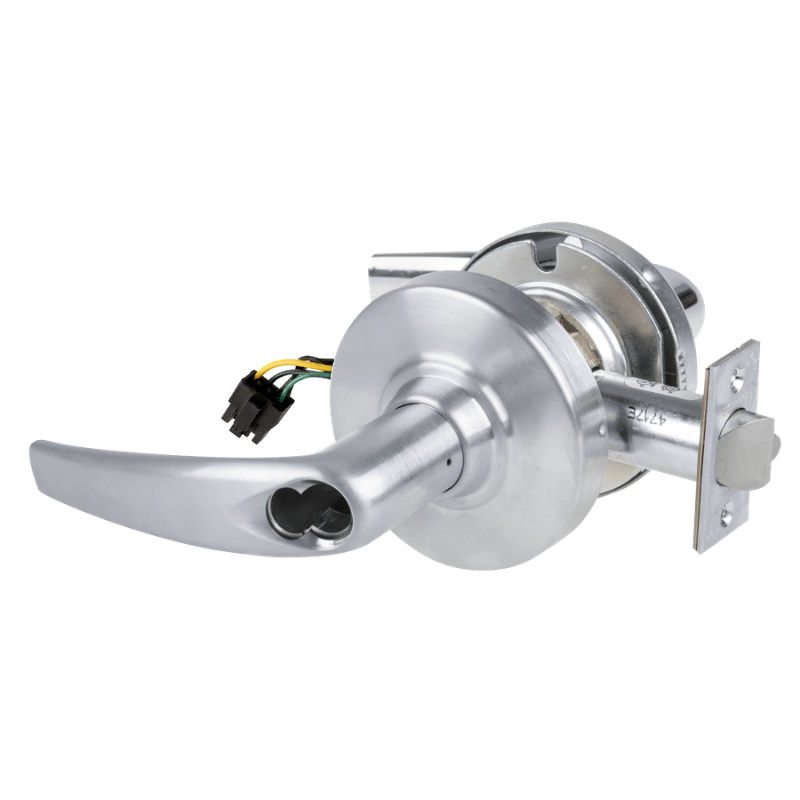

Schlage ND80JD-EL-ATH Cylindrical Electrified Storeroom Lock, Athens Lever, 12-24V VDC, Fail Safe, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EL-ATH Cylindrical Electrified Storeroom Lock combines Grade 1 durability with electrified access control performance in a heavy-duty cylindrical lockset. This configuration includes the Athens lever, 12-24V VDC operation, and fail safe functionality for openings that require remote release while maintaining storeroom security. It is prepared for a Schlage FSIC full sized interchangeable core and is supplied less core for keying flexibility. The lock also includes a 2-3/4 inch backset, 4-7/8 inch strike, and non handed design for easier field installation across a wide range of commercial door applications.

Features

• ND80JD-EL-ATH is a cylindrical electrified storeroom lock designed for commercial access control applications.
• This lock features the Athens lever trim for a clean, durable lever design.
• Electrified operation is rated for 12-24V VDC power.
• The fail safe function unlocks upon loss of power.
• Prepared for a Schlage FSIC full sized interchangeable core for flexible key system integration.
• Supplied less core so the interchangeable core can be provided separately to match the facility keying system.
• Includes a 2-3/4 inch backset for standard commercial door preparation requirements.
• Furnished with a 4-7/8 inch strike.
• Grade 1 construction provides the highest ANSI/BHMA grade for cylindrical locks.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80JD-EL electrified storeroom function is designed for controlled access on the outside lever while maintaining free egress from the inside. In fail safe mode, the outside lever remains locked when power is applied and unlocks when power is interrupted, making it suitable for openings tied to life-safety or emergency release requirements.

• Outside lever is locked by outside key. Inside lever always unlocked.
• Outside lever is unlocked by electric release.
• Fail safe locks require power to lock the lever. In the event of a power failure, the lever is unlocked for immediate access.
• Fail secure locks require power to unlock the lever. In the event of a power failure, the lever remains locked by key.
• 12 or 24VDC available.

Included Components

This configuration includes the ND80JD-EL-ATH cylindrical lock chassis with Athens lever trim, a 2-3/4 inch backset, and a 4-7/8 inch strike. It is prepared for a Schlage FSIC full sized interchangeable core and is supplied less core.
