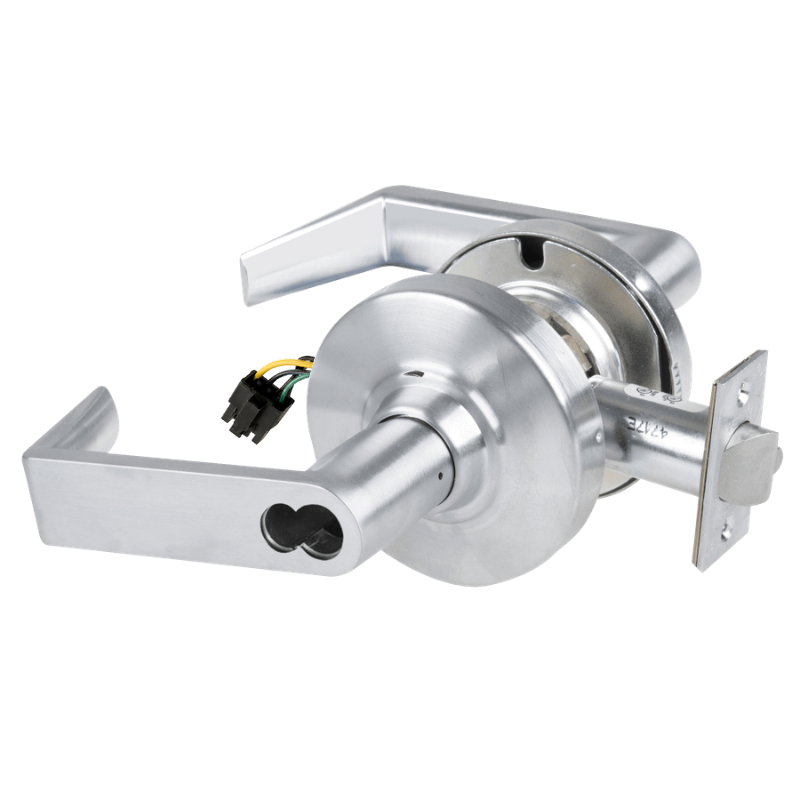

Schlage ND80JD-EL-RHO Cylindrical Electrified Storeroom Lock, Rhodes Lever, 12-24V VDC, Fail Safe, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EL-RHO Cylindrical Electrified Storeroom Lock combines heavy-duty Grade 1 performance with electrified access control in a dependable storeroom function. This lock features the Rhodes lever design, 12-24V VDC operation, and fail safe functionality for controlled egress and entry applications. It is prepared for a Schlage FSIC full sized interchangeable core and ships less core for flexible keying requirements. The lock is configured with a 2-3/4 inch backset, a 4-7/8 inch strike, and a non handed design that simplifies installation while delivering the durability and security expected from the Schlage ND Series.

Features

• ND80JD-EL-RHO is a cylindrical electrified storeroom lock built for commercial applications requiring access control integration.
• The Rhodes lever provides a clean, familiar lever style within the Schlage ND Series platform.
• 12-24V VDC operation supports low-voltage electrified hardware installations.
• Fail safe operation unlocks upon loss of power for applications that require this security behavior.
• This lock is prepared for a Schlage FSIC full sized interchangeable core for flexible rekeying and core management.
• The unit ships less core, allowing the interchangeable core to be supplied separately as needed.
• A 2-3/4 inch backset is included for standard commercial door preparation compatibility.
• The 4-7/8 inch strike is provided for proper frame engagement.
• Grade 1 construction meets demanding commercial performance requirements.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80JD-EL storeroom function is designed for electrified access control while maintaining the security characteristics expected in a storeroom lock. As a fail safe lock, the outside lever is unlocked when power is removed and remains controlled by electrical input during normal operation. The inside lever allows free egress, and the non handed chassis supports straightforward field installation.

• Outside lever is locked until energized.
• Inside lever always unlocked for immediate egress.
• Fail safe.
• 12 or 24VDC.

Included Components

This configuration includes the Schlage ND80JD-EL-RHO lock body with Rhodes lever trim and a 4-7/8 inch strike. It is prepared for a Schlage FSIC full sized interchangeable core but is supplied less core. The lock is furnished with a 2-3/4 inch backset and non handed construction for installation flexibility.
