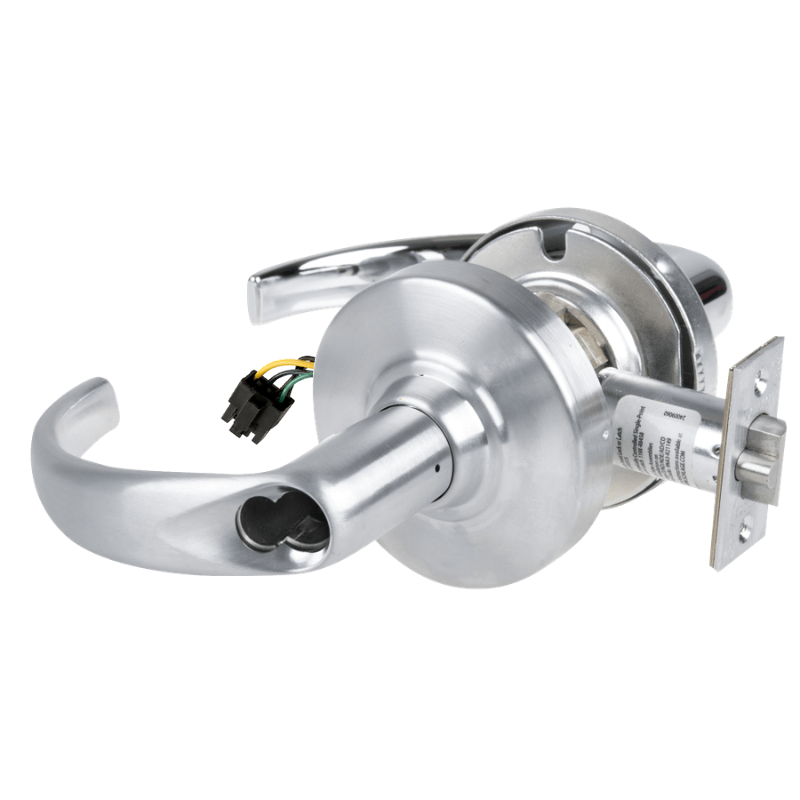

Schlage ND80JD-EL-SPA Cylindrical Electrified Storeroom Lock, Sparta Lever, 12-24V VDC, Fail Safe, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EL-SPA Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 solution built for demanding commercial openings that require controlled access and dependable performance. This configuration includes the Sparta lever, 12-24V VDC electrified operation, and fail safe functionality for applications where the outside lever is unlocked when power is applied or interrupted according to system design. It is prepared for a Schlage FSIC full sized interchangeable core and ships less core for keying flexibility. Additional specifications include a 2-3/4 inch backset, 4-7/8 inch strike, and non handed construction for easier field installation.

Features

• ND80JD-EL storeroom function provides electrified access control in a cylindrical lock platform.
• Sparta lever trim offers a clean, durable lever design for commercial applications.
• 12-24V VDC operation supports low-voltage electrified hardware requirements.
• Fail safe configuration is designed for openings that require unlocking under the specified power condition.
• Prepared for a Schlage FSIC full sized interchangeable core for simplified core management.
• Ships less core so the interchangeable core can be supplied separately to match the facility key system.
• 2-3/4 inch backset fits standard commercial door preparations requiring this latch dimension.
• 4-7/8 inch strike is included for proper frame and latch engagement.
• Grade 1 construction meets high-use commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80JD-EL electrified storeroom function is designed for controlled entry on doors that remain secure from the outside except when access is granted electrically. The inside lever remains free for egress, while the electrified outside lever responds to the fail safe operating mode. This makes it suitable for access control openings that require remote release and dependable life safety performance.

• Outside lever locked until electrical power is applied.
• Inside lever always unlocked for immediate egress.
• Latchbolt operated by lever from either side unless outside lever is electrically locked.
• Auxiliary latch deadlocks latchbolt when door is closed.

Included Components

This lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. The cylindrical lockset is configured with a 2-3/4 inch backset and 4-7/8 inch strike, and the non handed design helps streamline installation across multiple door handings.
