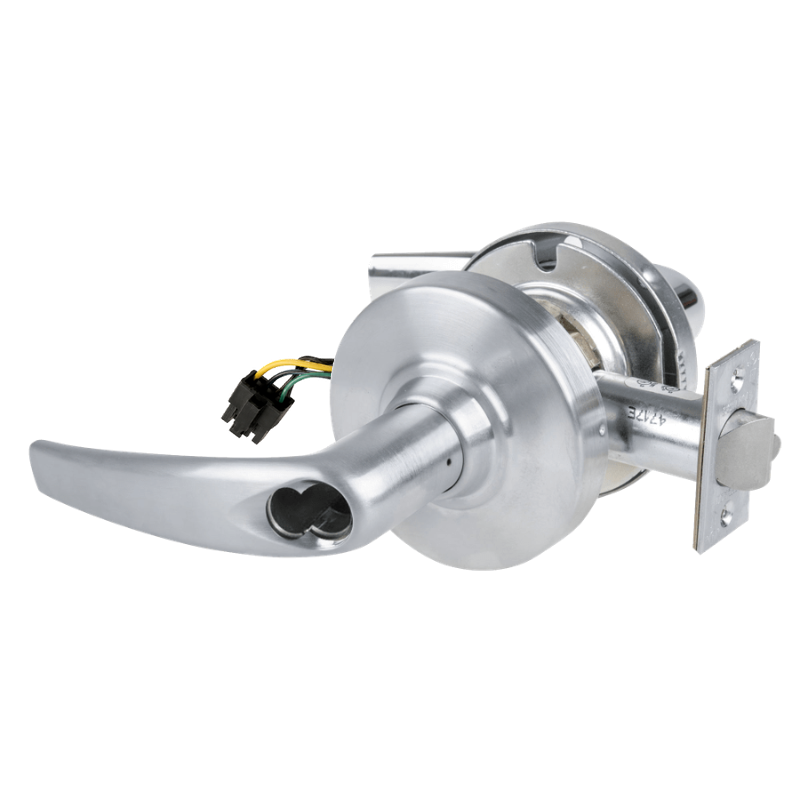

Schlage ND80JD-EU-ATH Cylindrical Electrified Storeroom Lock, Athens Lever, 12-24V VDC, Fail Secure, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EU-ATH Cylindrical Electrified Storeroom Lock combines heavy-duty Grade 1 performance with remote access control convenience for commercial openings. This electrified storeroom lock features the Athens lever design, 12-24V VDC operation, and fail secure functionality that keeps the outside lever locked during power loss while allowing authorized electrical release. It is prepped for a Schlage FSIC full sized interchangeable core and ships less core for keying flexibility. With a 2-3/4 inch backset, 4-7/8 inch strike, and non handed design, this ND Series lock is built for dependable use in demanding institutional, healthcare, educational, and commercial environments.

Features

• ND80JD-EU storeroom function provides electrified access control in a cylindrical lock format.
• Athens lever trim offers a clean, modern lever style for commercial applications.
• 12-24V VDC operation supports low-voltage electrified locking installations.
• Fail secure operation keeps the outside lever locked when power is removed.
• Prepared for a Schlage FSIC full sized interchangeable core for flexible key system management.
• Ships less core so the interchangeable core can be supplied separately to match the facility keying system.
• 2-3/4 inch backset supports standard commercial door preparation requirements.
• Includes a 4-7/8 inch strike for proper frame and latch engagement.
• Grade 1 construction is designed for high-use commercial openings.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80JD-EU electrified storeroom function is designed for access-controlled openings where the outside lever remains rigid and locked until electrical power momentarily releases the lever for authorized entry. Inside egress remains available at all times, making this fail secure configuration well suited for security-sensitive commercial doors that require controlled access and free exit.

• Outside lever is locked by default.
• Applying power unlocks outside lever.
• Inside lever always allows free egress.
• Fail secure operation keeps door secure when power is lost.

Included Components

This lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. It includes the cylindrical lockbody, Athens lever trim, and 4-7/8 inch strike for installation on compatible commercial doors and frames.
