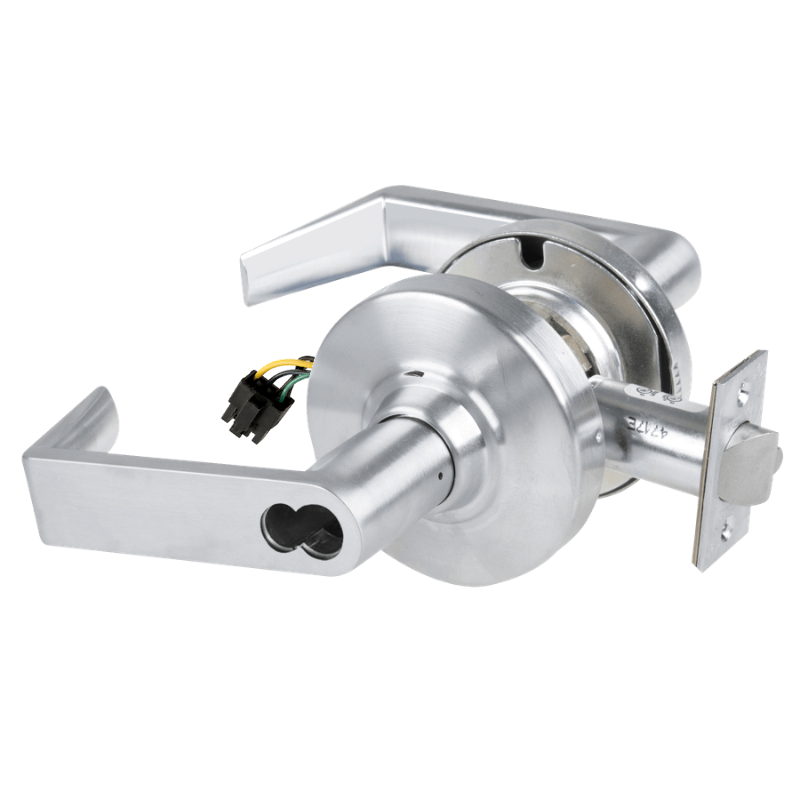

Schlage ND80JD-EU-RHO Cylindrical Electrified Storeroom Lock, Rhodes Lever, 12-24V VDC, Fail Secure, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EU-RHO Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lockset built for commercial openings that require controlled access and dependable durability. This configuration includes the Rhodes lever, 12-24V VDC operation, and fail secure electrified function for secure remote access control. It is prepared for a Schlage FSIC full sized interchangeable core and ships less core, making it suitable for facilities using interchangeable keying systems. The lock is furnished with a 2-3/4 inch backset, a 4-7/8 inch strike, and a non handed design for easier installation across a wide range of door applications.

Features

• ND80JD-EU electrified storeroom function provides controlled access with fail secure operation.
• Rhodes lever trim offers a clean Schlage lever design for commercial applications.
• Operates on 12-24V VDC to support common low-voltage access control systems.
• Prepared for a Schlage FSIC full sized interchangeable core for facilities using interchangeable core key systems.
• Ships less core so the interchangeable core can be supplied separately to match existing keying requirements.
• Includes a 2-3/4 inch backset for standard commercial door preparation compatibility.
• Furnished with a 4-7/8 inch strike for the specified frame and latch application.
• Grade 1 construction is designed for high-use commercial openings.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom lock is designed so the outside lever remains secure until electrical power momentarily releases access. In fail secure mode, the outside lever stays locked when power is removed, while the inside lever allows free egress at all times. This makes the ND80JD-EU well suited for controlled openings that need security on the exterior side without restricting exit from the inside.

• Outside lever is locked by default.
• Applying power unlocks outside lever.
• Inside lever always free for immediate egress.
• Fail secure operation keeps outside lever locked when power is interrupted.

Included Components

This lockset is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. The cylindrical lock is configured with the Rhodes lever, 2-3/4 inch backset, and 4-7/8 inch strike as specified.
