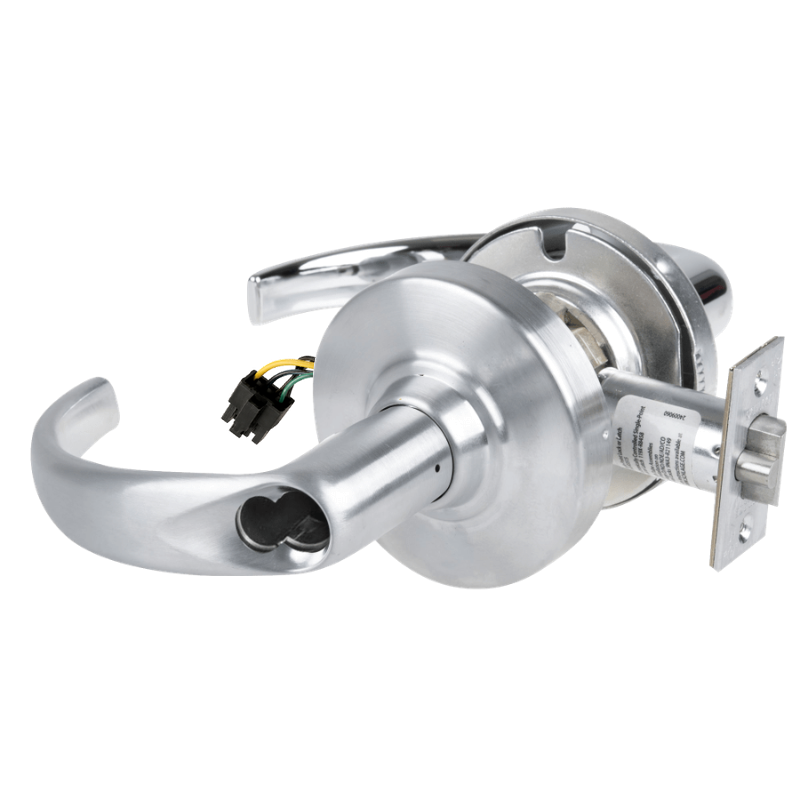

Schlage ND80JD-EU-SPA Cylindrical Electrified Storeroom Lock, Sparta Lever, 12-24V VDC, Fail Secure, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EU-SPA Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lockset built for demanding commercial openings that require remote access control and dependable mechanical security. This configuration includes the Sparta lever, 12-24V VDC electrified operation, and fail secure functionality, making it well suited for controlled entry applications. It is prepared for a Schlage FSIC full sized interchangeable core and is supplied less core for keying flexibility. This non handed lock is configured with a 2-3/4 inch backset and 4-7/8 inch strike, combining the strength of the ND Series platform with the convenience of electrified storeroom function.

Features

• ND80JD-EU-SPA is a cylindrical electrified storeroom lock designed for commercial applications requiring access control integration.
• The Sparta lever trim provides a clean, durable lever design used throughout the Schlage ND Series.
• Electrified operation supports 12-24V VDC wiring for flexible low-voltage system compatibility.
• Fail secure operation keeps the outside lever locked when power is removed while maintaining mechanical egress from the inside.
• This lock is prepared for a Schlage FSIC full sized interchangeable core for convenient rekeying and core management.
• The lock is supplied less core so the interchangeable core can be furnished separately to match the facility key system.
• A 2-3/4 inch backset is included for standard commercial door preparation requirements.
• The 4-7/8 inch strike is included for proper frame and latch engagement.
• Grade 1 construction meets heavy-duty performance requirements for high-traffic openings.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function allows the outside lever to be controlled by an access control system while the inside lever remains free for immediate egress. In fail secure mode, the outside lever stays locked during a power loss, and authorized entry is restored when power is applied. This setup is commonly used where security must be maintained if power is interrupted.

• Outside cylinder retracts latchbolt by key.
• Inside lever always unlocked for immediate egress.
• Outside lever is unlocked by electric current and remains unlocked while current is applied.
• Outside lever is locked by spring force when current is turned off.

Included Components

This Schlage ND80JD-EU-SPA lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. The lock is configured with a 2-3/4 inch backset and includes a 4-7/8 inch strike.
