Description

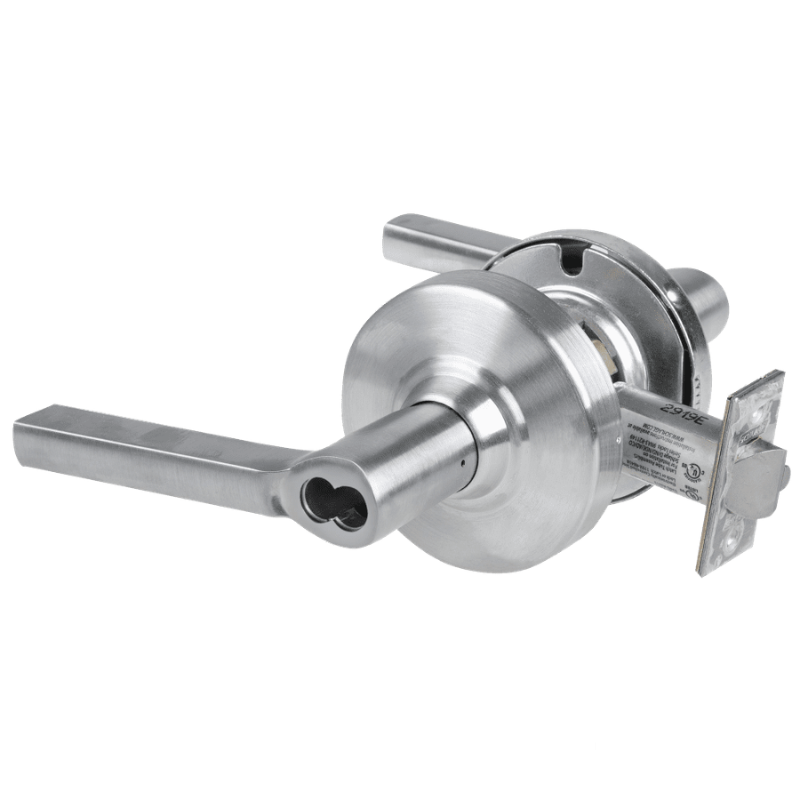

Schlage ND80JD-LAT Cylindrical Storeroom Lock, Latitude Lever, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80JD-LAT Cylindrical Storeroom Lock is a heavy-duty Grade 1 lock built for high-traffic commercial openings that need dependable security and durability. This configuration includes the Latitude lever, Schlage FSIC full sized interchangeable core preparation, and is supplied less core for field keying flexibility. It is designed with a 2-3/4 inch backset and a 4-7/8 inch strike, making it a practical choice for standard commercial door applications. As a non handed cylindrical storeroom lock in the Schlage ND Series, the ND80JD-LAT combines strong construction, flexible keying options, and reliable performance for demanding institutional, retail, and office environments.
Features
- ND80JD-LAT cylindrical storeroom lock function is designed for secure commercial door applications.
- Latitude lever trim provides a clean, modern lever design for Schlage ND Series locks.
- Prepared for a Schlage FSIC full sized interchangeable core for flexible key system management.
- Supplied less core so the interchangeable core can be furnished separately to match the facility keying system.
- Configured with a 2-3/4 inch backset for compatible door preparation.
- Includes a 4-7/8 inch strike for commercial frame applications.
- Grade 1 construction meets heavy-duty performance requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
This storeroom function keeps the outside lever rigid at all times and requires a key for entry from the outside, while the inside lever remains free for immediate egress. It is a common choice for rooms that must stay locked from the corridor side without restricting exit from the interior.
- Outside lever rigid.
- Entrance by key only.
- Inside lever always unlocked.
Included Components
This Schlage ND80JD-LAT lock is furnished less core and is prepared to accept a Schlage FSIC full sized interchangeable core. The lock is configured with a 2-3/4 inch backset and a 4-7/8 inch strike.
Product Specifications
| Manufacturer | Schlage |
| Series | ND Series |
| Model | ND80JD-LAT |
| Lock Type | Cylindrical Lock |
| Function | Storeroom |
| Lever Design | Latitude Lever |
| Core Type | Schlage FSIC Full Sized Interchangeable Core |
| Core Included | Less Core |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Handing | Non Handed |
| Grade | Grade 1 |
| ANSI Number | F86 |
| UL Listing Type | UL listed for 3-hour fire door |
| Origin | Made in USA of domestic and imported materials |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty where applicable |
| SKU | ND-80JD-LAT |
Technical Specifications
| ANSI/BHMA Grade | Grade 1 |
| ANSI Function Number | F86 |
| Backset | 2-3/4 Inch |
| Strike Size | 4-7/8 Inch |
| Door Thickness Range | 1-3/8 Inch to 2-1/8 Inch |
| Crossbore | 2-1/8 Inch |
| Edge Bore | 1 Inch |
| Latch Front | 1-1/8 Inch x 2-1/4 Inch |
| Standard Strike | ANSI 115.1, 4-7/8 Inch |
| Fire Rating | 3 Hour |
| Cylinder Preparation | FSIC Full Sized Interchangeable Core |
| Handing | Non Handed |
| Lever Style | Latitude |
| Chassis Type | Cylindrical |
| Latchbolt Throw | 1/2 Inch |
