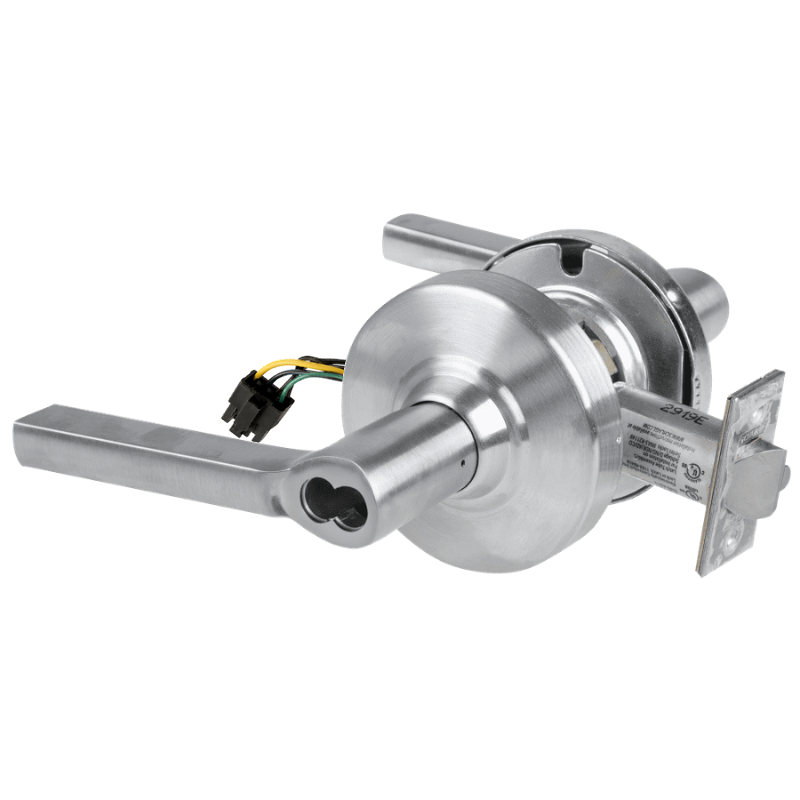

Schlage ND80JD-LAT-RX Cylindrical Storeroom Lock, Latitude Lever, Request to Exit, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-LAT-RX Cylindrical Storeroom Lock combines Grade 1 durability with the clean look of a Latitude lever for demanding commercial openings. This non handed lock is built in the ND Series and features Request to Exit capability for access control applications. It is configured for a Schlage FSIC full sized interchangeable core and is supplied less core, making it a practical choice when cores are managed separately. The lock includes a 2-3/4 inch backset and 4-7/8 inch strike, giving you a heavy-duty storeroom function solution designed for reliable performance in schools, offices, healthcare, and other high-traffic facilities.

Features

• ND80JD-LAT-RX is a cylindrical storeroom lock designed for commercial-duty applications.
• The Latitude lever provides a modern straight lever design within the Schlage ND Series.
• Request to Exit monitoring supports use with access control and egress signaling systems.
• This lock is prepared for a Schlage FSIC full sized interchangeable core for flexible key system management.
• The unit is supplied less core so the interchangeable core can be furnished separately.
• A 2-3/4 inch backset is included for standard commercial door preparation requirements.
• The 4-7/8 inch strike supports proper frame alignment and secure latching.
• Grade 1 construction delivers the highest ANSI/BHMA performance classification for cylindrical locks.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The storeroom function keeps the outside lever rigid at all times, and entrance is controlled by key. On the inside, the lever always remains free for immediate egress. The RX Request to Exit feature adds internal switch monitoring that signals lever operation for integration with access control systems.

• Outside lever fixed.
• Entrance by key only.
• Inside lever always unlocked.
• Request-to-exit switch available.

Included Components

This lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. It is furnished with a 2-3/4 inch backset latch and a 4-7/8 inch strike for installation.
