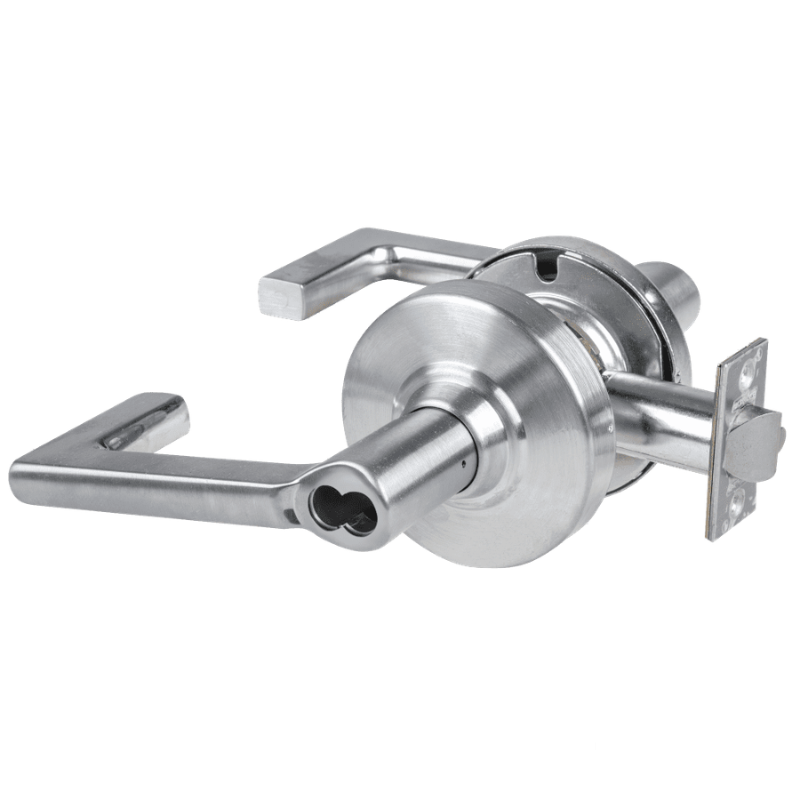

Schlage ND80JD-LON Cylindrical Storeroom Lock, Longitude Lever, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80JD-LON Cylindrical Storeroom Lock is a heavy-duty Grade 1 lockset built for high-traffic commercial openings that require dependable security and long service life. This configuration includes the Longitude lever, Schlage FSIC full sized interchangeable core prep, and is supplied less core for flexible keying integration. It is designed with a 2-3/4 inch backset, a 4-7/8 inch strike, and a non handed chassis for easier installation and field adaptability. As part of the ND Series, the ND80JD-LON combines storeroom function performance with the durability, strength, and serviceability expected from Schlage commercial cylindrical locks.
Features
- ND80JD storeroom function provides controlled outside access with a cylindrical lock design suited for commercial applications.
- Longitude lever trim offers a modern lever style within the Schlage ND Series platform.
- Prepared for a Schlage FSIC full sized interchangeable core to support convenient rekeying and key system management.
- Supplied less core, allowing the interchangeable core to be furnished separately to match the opening keying requirements.
- Configured with a 2-3/4 inch backset for doors requiring the longer latch projection.
- Includes a 4-7/8 inch strike for the specified frame preparation.
- Grade 1 construction meets demanding commercial performance requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
The ND80JD storeroom function is designed so the outside lever remains locked and requires a key for entry, while free egress is maintained from the inside for safety and code compliance. This function is commonly used on doors where authorized entry is needed from the exterior but occupants must always be able to exit without restriction.
- Outside lever fixed.
- Entrance by key only.
- Inside lever always unlocked.
Included Components
This Schlage ND80JD-LON lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. The cylindrical lockset includes the specified 2-3/4 inch backset latch and 4-7/8 inch strike as part of the configured opening preparation.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80JD-LON |
| Lock Type | Cylindrical Lock |
| Function | Storeroom Lock |
| Lever Design | Longitude Lever |
| Core Format | Schlage FSIC Full Sized Interchangeable Core |
| Core Included | Less Core |
| Handing | Non Handed |
| Grade | Grade 1 |
| ANSI Number | F86 |
| UL Listing Type | UL listed for 3-hour fire door |
| Origin | Made in USA of domestic and imported materials |
| Unit of Measure | Each |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
Technical Specifications
| Backset | 2-3/4 inch |
|---|---|
| Strike | 4-7/8 inch |
| Door Thickness | 1-3/8 inch to 2-1/8 inch |
| Cross Bore | 2-1/8 inch |
| Edge Bore | 1 inch |
| Latch Front | 1-1/8 inch x 2-1/4 inch |
| Strike Dimensions | 1-1/4 inch x 4-7/8 inch |
| Cylinder Type | FSIC full sized interchangeable core |
| Handing | Non handed |
| ANSI/BHMA Grade | Grade 1 |
| Cycle Testing | 3,100,000 cycles |
| Fire Rating | 3 hour |
| Lever Projection | 3-17/32 inch |
| Rose Diameter | 3-7/16 inch |
