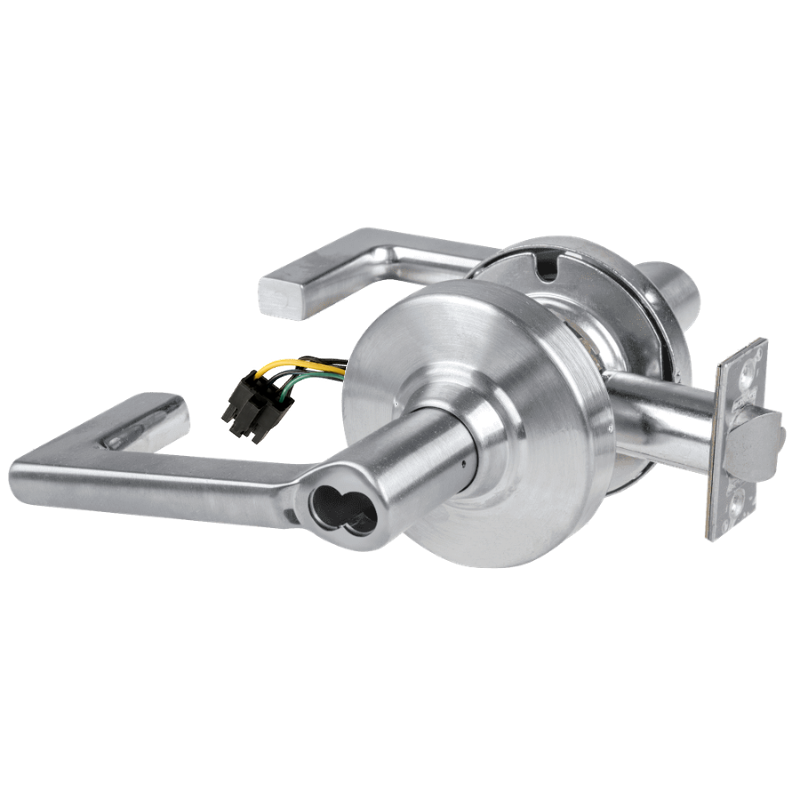

Schlage ND80JD-LON-RX Cylindrical Storeroom Lock, Longitude Lever, Request to Exit, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-LON-RX Cylindrical Storeroom Lock is a heavy-duty Grade 1 cylindrical lock built for high-traffic commercial openings that require dependable security and request to exit capability. This configuration includes the Longitude lever, Request to Exit feature, and Schlage FSIC Full Sized Interchangeable Core preparation, supplied less core for flexible keying. It is furnished with a 2-3/4 inch backset and 4-7/8 inch strike, and its non handed design helps simplify installation across a wide range of door applications. The ND80JD-LON-RX is part of the Schlage ND Series, known for durability, consistent performance, and commercial-grade reliability.

Features

• ND80JD-LON-RX storeroom function provides secure outside access while supporting request to exit operation.
• Longitude lever design offers a modern lever style suited for commercial openings.
• Request to Exit feature supports egress-related signaling requirements in access control applications.
• Prepared for a Schlage FSIC Full Sized Interchangeable Core for key system flexibility.
• Supplied less core so the interchangeable core can be provided separately to match the facility keying system.
• Configured with a 2-3/4 inch backset for compatible door preparation.
• Includes a 4-7/8 inch strike for the specified frame condition.
• Grade 1 construction meets demanding commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.
• Cylindrical lock chassis supports heavy-duty commercial use in the Schlage ND Series.

Functional Details

The storeroom function keeps the outside lever rigid at all times, requiring a key for entry, while the inside lever remains free for immediate egress. The RX request to exit feature is designed for electrified and monitored openings where lever movement must signal an access control or door monitoring system.

• Outside lever fixed.
• Entrance by key only.
• Inside lever always unlocked.
• RX switch monitors inside lever movement.

Included Components

This lock is supplied less core and is prepared to accept a Schlage FSIC Full Sized Interchangeable Core. It is configured with a 2-3/4 inch backset and a 4-7/8 inch strike, and the non handed chassis supports either door hand without requiring handing changes.
