Description

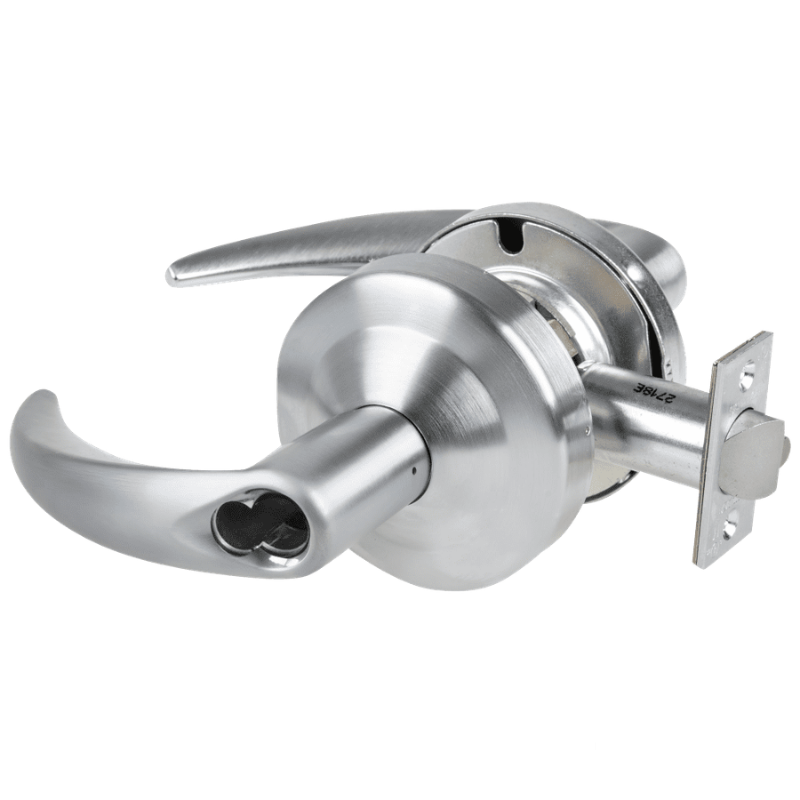

Schlage ND80JD-OME Cylindrical Storeroom Lock, Omega Lever, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80JD-OME Cylindrical Storeroom Lock is a heavy-duty Grade 1 lock designed for demanding commercial openings. This configuration includes the Omega lever, Schlage FSIC full sized interchangeable core preparation, and is supplied less core so it can be matched to an existing key system. Built with a 2-3/4 inch backset and 4-7/8 inch strike, the ND80JD-OME is well suited for institutional, retail, and other high-traffic applications that need dependable storeroom security. Its non handed design simplifies installation, while the ND Series platform delivers the strength, durability, and serviceability expected from Schlage commercial cylindrical locks.
Features
- ND80JD storeroom function keeps the outside lever rigid at all times for secure access control.
- Omega lever design provides a distinctive commercial lever style within the Schlage ND Series.
- Prepared for a Schlage FSIC full sized interchangeable core for convenient core changes and key system flexibility.
- Supplied less core, allowing the interchangeable core to be furnished separately.
- Configured with a 2-3/4 inch backset for doors requiring the longer standard commercial backset.
- Includes a 4-7/8 inch strike for compatible frame preparation.
- Grade 1 construction meets high-performance commercial hardware requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
The ND80JD storeroom function is designed for doors that must remain locked from the outside while allowing free egress from the inside. This makes it a practical choice for employee-only areas, stock rooms, and other spaces where authorized entry is controlled by key while exit must remain immediate and unobstructed.
- Outside lever locked by key from outside.
- Inside lever always unlocked.
- Inside lever retracts latchbolt at all times.
- Outside lever rigid.
Included Components
This lock is supplied with the Omega lever trim, Schlage FSIC full sized interchangeable core housing, a 2-3/4 inch backset latch, and a 4-7/8 inch strike. The cylinder core is not included, as this configuration is furnished less core.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80JD-OME |
| Lock Type | Cylindrical Lock |
| Function | Storeroom Lock |
| Lever Design | Omega Lever |
| Core Type | Schlage FSIC Full Sized Interchangeable Core |
| Core Included | Less Core |
| Handing | Non Handed |
| Grade | Grade 1 |
| ANSI Number | F86 |
| UL Listing Type | UL listed for 3-hour fire door |
| Unit of Measure | Each |
| Origin | Made in USA of domestic and imported materials |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
| SKU | ND-80JD-OME |
Technical Specifications
| Backset | 2-3/4 Inch |
|---|---|
| Strike | 4-7/8 Inch Strike |
| Latch Front | 1-1/8 Inch x 2-1/4 Inch |
| Door Thickness Range | 1-3/8 Inch to 1-3/4 Inch standard |
| Cross Bore | 2-1/8 Inch |
| Edge Bore | 1 Inch |
| Latchbolt Throw | 1/2 Inch |
| Strike Dimension | 1-1/4 Inch x 4-7/8 Inch |
| Cylinder Preparation | FSIC Full Sized Interchangeable Core |
| Handing | Non Handed |
| ANSI/BHMA Grade | Grade 1 |
| Fire Rating | 3 Hour |
| Cycle Testing | 3,100,000 cycles |
| Lever Projection | 3-17/32 Inch |
