Description

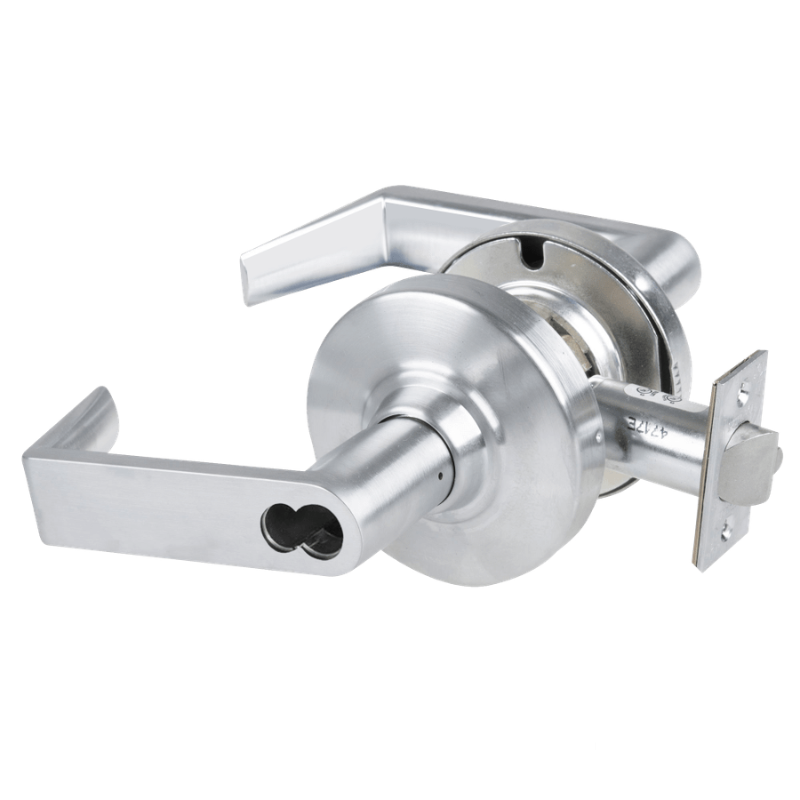

Schlage ND80JD-RHO Cylindrical Storeroom Lock, Rhodes Lever, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80JD-RHO Cylindrical Storeroom Lock is a heavy-duty Grade 1 lock built for high-traffic commercial openings that need dependable security and long service life. This configuration features the Rhodes lever design, Schlage FSIC full sized interchangeable core prep, and is supplied less core for keyed system flexibility. It is designed with a 2-3/4 inch backset and a 4-7/8 inch strike, making it well suited for standard commercial door applications. The ND80JD-RHO is non handed for easier installation and combines proven cylindrical lock performance with the strength and durability expected from the Schlage ND Series.
Features
- ND80JD storeroom function provides secure outside access with a lever that remains rigid when locked.
- Rhodes lever trim offers a distinctive commercial lever design from the Schlage ND Series.
- Prepared for a Schlage FSIC full sized interchangeable core for flexible key system management.
- Supplied less core so the interchangeable core can be furnished separately to match the facility keying system.
- Built with a 2-3/4 inch backset for commercial door preparation compatibility.
- Includes a 4-7/8 inch strike for proper frame reinforcement and latch engagement.
- Grade 1 construction meets demanding commercial performance requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
The ND80JD storeroom function is designed for doors that must stay secure from the outside while allowing free egress from the inside. On this function, the outside lever remains fixed in the locked position and entrance is by key only, while the inside lever always allows immediate exit. With the Schlage FSIC full sized interchangeable core preparation, the core can be quickly changed to support rekeying and key control needs.
- Outside lever fixed.
- Entrance by key only.
- Inside lever always unlocked.
Included Components
This lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. It is configured with the Rhodes lever, a 2-3/4 inch backset, and a 4-7/8 inch strike as specified in the title.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80JD-RHO |
| Product Type | Cylindrical Storeroom Lock |
| Lever Design | Rhodes Lever |
| Core Type | Schlage FSIC Full Sized Interchangeable Core |
| Core Included | Less Core |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Grade | Grade 1 |
| Handing | Non Handed |
| ANSI Number | ANSI A156.2, Series 4000, Grade 1 |
| UL Listing Type | UL listed for 3-hour fire door |
| Unit of Measure | Each |
| Origin | Made in USA of domestic and imported materials |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
Technical Specifications
| Lock Function | ND80JD Storeroom |
|---|---|
| ANSI Grade | Grade 1 |
| ANSI Standard | A156.2, Series 4000 |
| Fire Rating | 3 Hour |
| Door Thickness | 1-5/8 Inch to 2-1/8 Inch |
| Backset | 2-3/4 Inch |
| Strike Size | 4-7/8 Inch |
| Latch Front | 1-1/8 Inch x 2-1/4 Inch |
| Crossbore | 2-1/8 Inch |
| Edge Bore | 1 Inch |
| Cylinder Prep | FSIC Full Sized Interchangeable Core |
| Handing | Non Handed |
| Lever Style | Rhodes |
| Latchbolt Throw | 1/2 Inch |
| Door Range | 1-5/8 Inch to 2-1/8 Inch |
