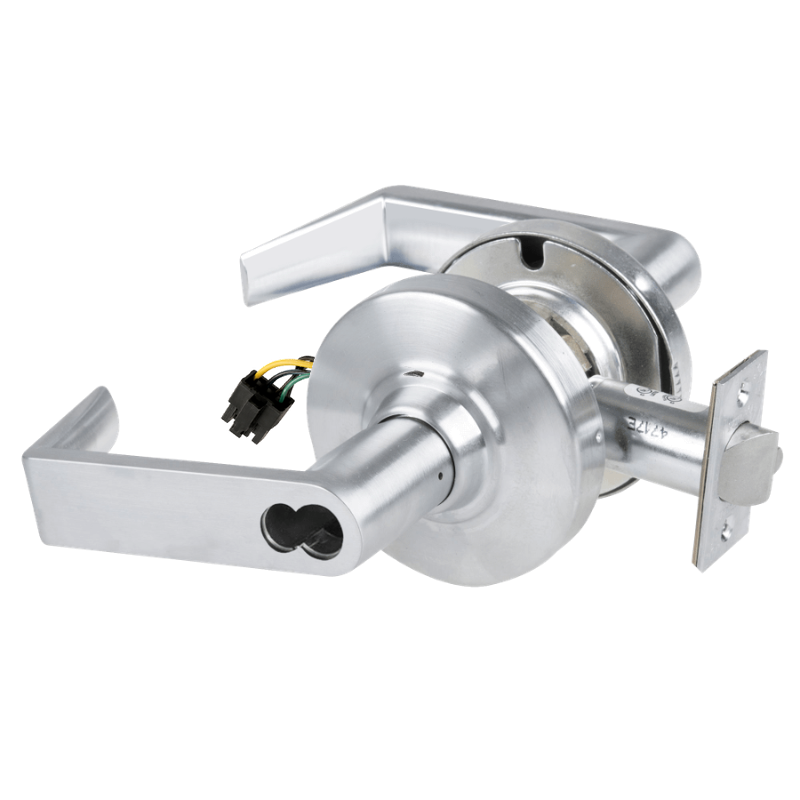

Schlage ND80JD-RHO-RX Cylindrical Storeroom Lock, Rhodes Lever, Request to Exit, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-RHO-RX Cylindrical Storeroom Lock with Rhodes lever is a heavy-duty Grade 1 lockset built for high-traffic commercial openings that require dependable security and controlled access. This ND80JD-RHO-RX configuration includes Request to Exit capability and is prepped for a Schlage FSIC Full Sized Interchangeable Core, supplied less core for key system flexibility. It is furnished with a 2-3/4 inch backset and a 4-7/8 inch strike, making it suitable for standard commercial door prep. With its cylindrical storeroom lock function and non handed design, this lock supports efficient installation and long-term performance in demanding applications.

Features

• ND80JD-RHO-RX cylindrical storeroom lock function is designed for commercial security applications where the outside lever remains locked and access is controlled by key.
• Rhodes lever trim provides the specified lever design for this Schlage ND Series lockset.
• Request to Exit monitoring adds signaling capability for access control and egress-related applications.
• Prepared for a Schlage FSIC Full Sized Interchangeable Core for convenient core changes and key system management.
• Less core configuration allows the lock to be paired with the appropriate interchangeable core separately.
• Includes a 2-3/4 inch backset for compatibility with the specified door preparation.
• Supplied with a 4-7/8 inch strike for the listed frame and latch arrangement.
• Grade 1 construction meets demanding commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.
• Cylindrical chassis design supports durability, serviceability, and consistent operation in high-use openings.

Functional Details

The storeroom function keeps the outside lever rigid at all times and requires a key for entry, while the inside lever allows free egress. In this ND80JD-RHO-RX configuration, the Request to Exit feature provides switch-based signaling when egress operation is required as part of an access control system.

• Outside lever rigid.
• Latchbolt operated by key in outside lever or by inside lever.
• Inside lever always unlocked.

Included Components

This lock is supplied less core and is prepared to accept a Schlage FSIC Full Sized Interchangeable Core. The unit includes the specified 2-3/4 inch backset and 4-7/8 inch strike as part of the listed configuration.
