Description

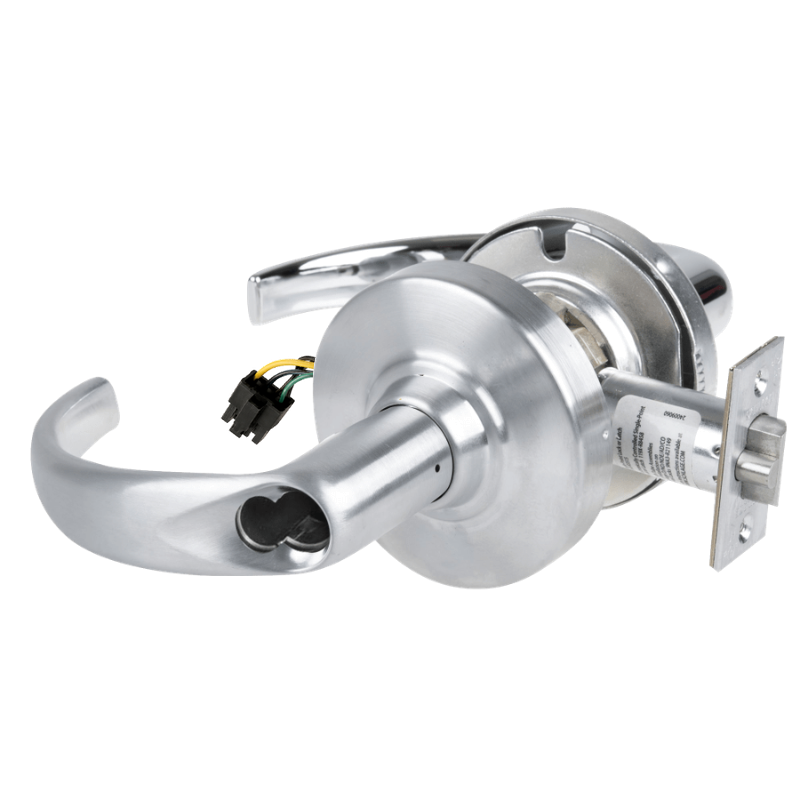

Schlage ND80JD-SPA-RX Cylindrical Storeroom Lock, Sparta Lever, Request to Exit, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80JD-SPA-RX Cylindrical Storeroom Lock with Sparta lever is a heavy-duty Grade 1 lock designed for demanding commercial openings. This request to exit function provides dependable storeroom security while supporting egress signaling needs. It is prepared for a Schlage FSIC full sized interchangeable core and is supplied less core, making it a practical choice for facilities using interchangeable key systems. This non handed cylindrical lock includes a 2-3/4 inch backset and 4-7/8 inch strike for standard commercial door prep compatibility. Built as part of the Schlage ND Series, it delivers strong performance, durability, and reliable operation in high-traffic environments.
Features
- ND80JD-SPA-RX is a cylindrical storeroom lock built for commercial-duty security applications.
- The Sparta lever design provides a clean, durable lever trim for institutional and commercial openings.
- Request to exit functionality supports egress-related signaling when the inside lever is operated.
- Prepared for a Schlage FSIC full sized interchangeable core for facilities that use interchangeable core keying systems.
- Supplied less core so the interchangeable core can be furnished separately to match existing key systems.
- The 2-3/4 inch backset fits common commercial door preparations.
- Includes a 4-7/8 inch strike for compatible frame installations.
- Grade 1 construction meets heavy-duty performance requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
The ND80JD storeroom function keeps the outside lever rigid at all times, while authorized access is gained by key. The inside lever always allows free egress, and the RX request to exit feature provides monitoring capability tied to lever operation for access control or alarm interface applications.
- Outside lever rigid.
- Entrance by key only.
- Inside lever always unlocked.
- RX switch monitors inside lever rotation.
Included Components
This lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. It includes the cylindrical lockbody, Sparta lever trim, 2-3/4 inch backset configuration, and 4-7/8 inch strike.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80JD-SPA-RX |
| Lock Type | Cylindrical Storeroom Lock |
| Lever Design | Sparta Lever |
| Function | Storeroom with Request to Exit |
| Core Type | Schlage FSIC Full Sized Interchangeable Core |
| Core Included | Less Core |
| Handing | Non Handed |
| Grade | ANSI/BHMA Grade 1 |
| ANSI Number | F07 |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| UL Listing Type | UL listed for 3-hour fire door |
| Unit of Measure | Each |
| Origin | Made in USA of domestic and imported materials |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
Technical Specifications
| Backset | 2-3/4 Inch |
|---|---|
| Strike Height | 4-7/8 Inch |
| Door Thickness Range | 1-3/8 Inch to 1-3/4 Inch standard |
| Cross Bore | 2-1/8 Inch |
| Edge Bore | 1 Inch |
| Latch Front | 1-1/8 Inch x 2-1/4 Inch |
| Strike Dimension | 1-1/4 Inch x 4-7/8 Inch |
| Cylinder Type | FSIC full sized interchangeable core preparation |
| Handing | Non Handed |
| Grade | Grade 1 |
| ANSI Function Number | F07 |
| Fire Rating | 3 Hour |
| Lever Rotation Monitoring | RX switch monitors inside lever rotation |
| Function Operation | Outside lever rigid; entrance by key only; inside lever always unlocked |
