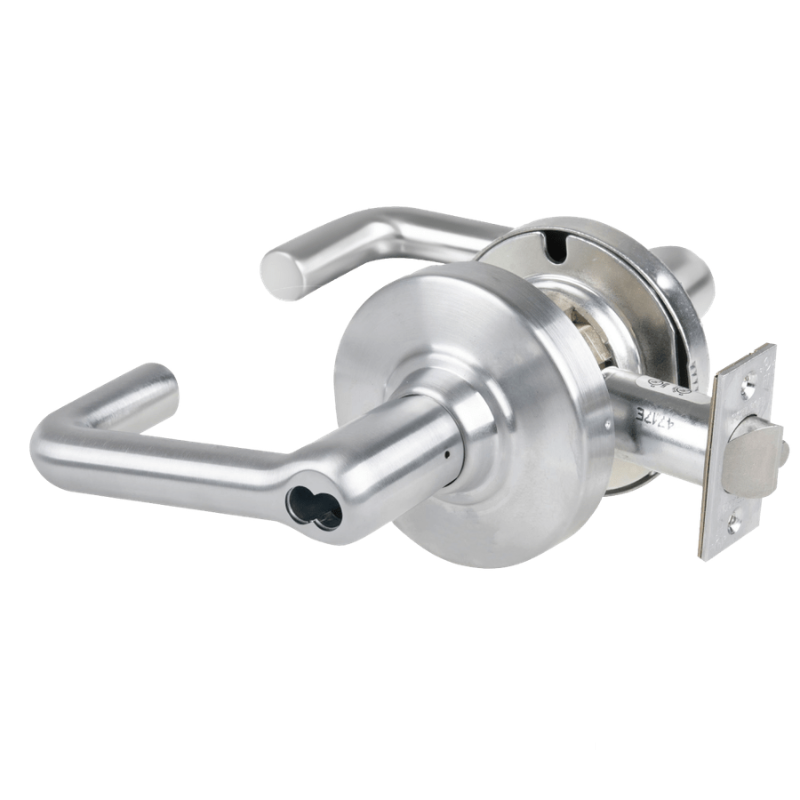

Schlage ND80JD-TLR Cylindrical Storeroom Lock, Tubular Lever, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-TLR Cylindrical Storeroom Lock is a heavy-duty Grade 1 lockset built for high-traffic commercial openings that require dependable security and long service life. This configuration includes a tubular lever design, Schlage FSIC full sized interchangeable core prep, and is supplied less core for flexible keying. It features a 2-3/4 inch backset and a 4-7/8 inch strike for standard commercial door applications. The ND80JD-TLR storeroom function is non handed for easier installation, making it a practical choice for schools, offices, healthcare facilities, and other demanding institutional environments.

Features

• ND80JD-TLR cylindrical storeroom lock function is designed for controlled exterior or corridor access in commercial settings.
• Tubular lever trim provides a familiar lever-operated design suited for frequent use.
• Prepared for a Schlage FSIC full sized interchangeable core to support flexible key system management.
• Supplied less core so the interchangeable core can be furnished separately to match the facility keying system.
• 2-3/4 inch backset fits common commercial door preparations.
• Includes a 4-7/8 inch strike for compatible frame applications.
• Grade 1 construction meets demanding performance requirements for heavy-duty use.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80JD-TLR storeroom function keeps the outside lever rigid at all times. Entry from the outside requires a key, while the inside lever remains free for immediate egress. This function is commonly used where security is needed on the exterior side without restricting exit from the inside.

• Outside lever fixed.
• Entrance by key only.
• Inside lever always unlocked.

Included Components

This Schlage ND80JD-TLR lock is supplied less core and prepared to accept a Schlage FSIC full sized interchangeable core. The lock includes the cylindrical lock body, tubular lever trim, and 4-7/8 inch strike for a 2-3/4 inch backset application.
