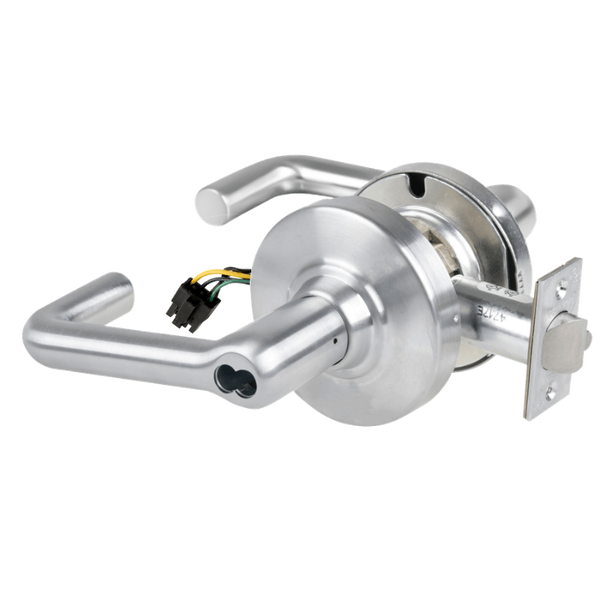

Schlage ND80JD-TLR-RX Cylindrical Storeroom Lock, Tubular Lever, Request to Exit, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-TLR-RX is a Grade 1 cylindrical storeroom lock built for high-traffic commercial openings where security and reliable access control are essential. Featuring the Tubular (TLR) lever design and a Request to Exit (RX) switch, this lock allows for electronic monitoring of latch retraction, making it ideal for access-controlled and secure areas. It is prepped for a Schlage Full Size Interchangeable Core (FSIC) but ships less core, giving you flexibility to key it to your existing system. With a 2-3/4 inch backset and 4-7/8 inch strike, this non-handed lock delivers durable, code-compliant performance in demanding environments.

Features

• Grade 1 cylindrical lock engineered for heavy-duty commercial use.
• Storeroom function keeps the outside lever locked at all times for controlled entry.
• Tubular (TLR) lever design offers a clean, modern look and comfortable operation.
• Built-in Request to Exit (RX) switch monitors latch retraction for access control integration.
• Accepts a Schlage Full Size Interchangeable Core (FSIC); shipped less core for keying flexibility.
• Non-handed design fits both left- and right-hand doors.
• 2-3/4 inch backset with a 4-7/8 inch strike for standard commercial door prep.

Functional Details

The storeroom function keeps the outside lever fixed and locked, so entry requires a key each time. The latch is retracted by key from the outside or by turning the inside lever, which always allows free egress. The RX switch signals when the inside lever is operated for exit monitoring.

• Outside lever is fixed. Entrance by key only. Inside lever always free for immediate exit. Auxiliary latch deadlocks the latchbolt when the door is closed.

Included Components

This lockset includes the ND Series chassis with Tubular (TLR) levers, the Request to Exit switch, latch, and strike. A core is not included and must be ordered separately or supplied from your existing Schlage FSIC keying system.
