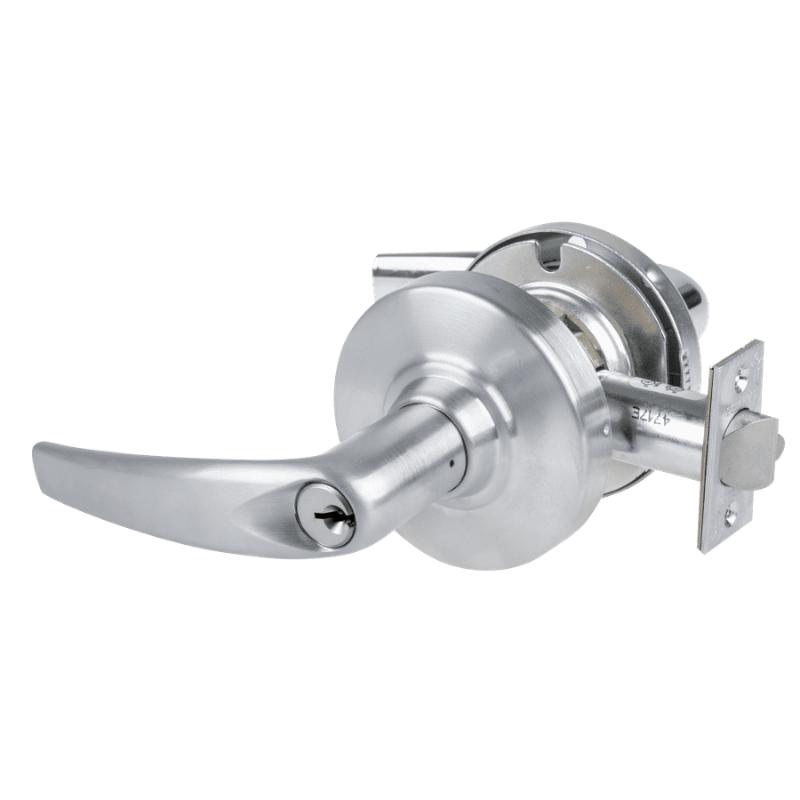

Schlage ND80PD-ATH Cylindrical Storeroom Lock, Athens Lever, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-ATH Cylindrical Storeroom Lock with Athens lever is a heavy-duty Grade 1 cylindrical lock built for high-traffic commercial openings. This ND80PD-ATH configuration uses the Schlage "C" keyway, is keyed different, and includes [2] change keys for standard key control at the opening. It is supplied with a 2-3/4 inch backset and a 4-7/8 inch strike, making it a practical fit for many commercial door applications. Designed as a storeroom function lock, this non handed Schlage ND Series lock delivers dependable security, strong lever durability, and the performance expected from a commercial Grade 1 lockset.

Features

• ND80PD-ATH cylindrical storeroom lock function provides secure outside access control for commercial doors.

• Athens lever trim offers a clean, modern lever design within the Schlage ND Series.

• Schlage "C" keyway is included for standard Schlage keying compatibility.

• Keyed different configuration means this lock operates on its own unique key combination.

• Includes [2] change keys for immediate operation after installation.

• Supplied with a 2-3/4 inch backset for doors requiring the longer latch dimension.

• Furnished with a 4-7/8 inch strike for compatible frame preparation.

• Grade 1 construction meets the highest ANSI/BHMA performance classification for cylindrical locks.

• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80PD storeroom function is commonly used on doors that must remain locked from the outside while allowing free egress from the inside. The outside lever remains rigid and entrance is by key, while the inside lever always allows immediate exit.

• Outside lever fixed.

• Entrance by key only.

• Inside lever always unlocked.
