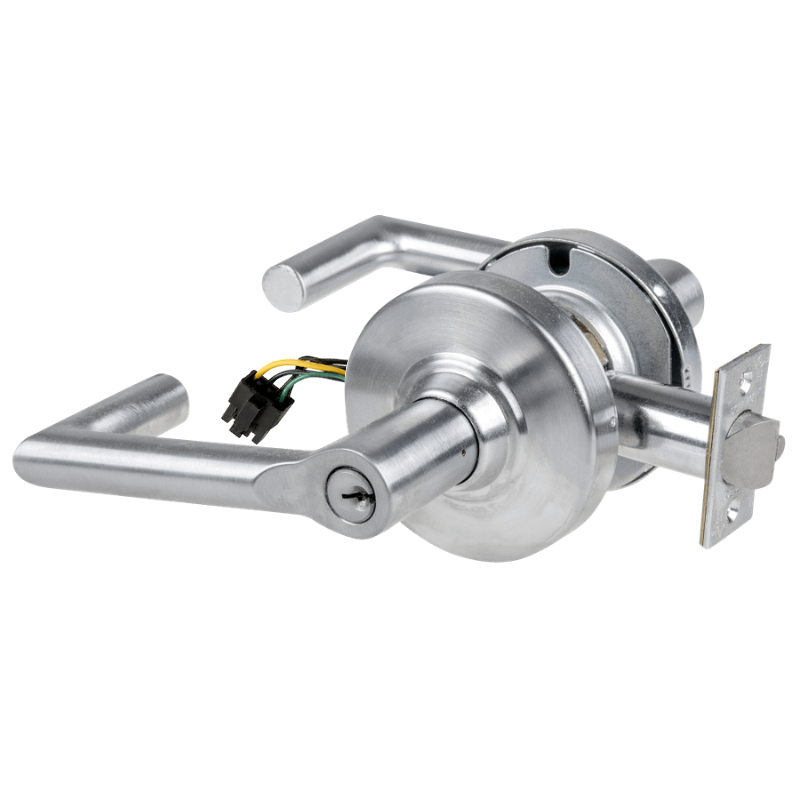

Schlage ND80PD-BRK-RX Cylindrical Storeroom Lock, Boardwalk Lever, Request to Exit, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-BRK-RX Cylindrical Storeroom Lock with Boardwalk lever is a heavy-duty Grade 1 cylindrical lock built for high-traffic commercial openings that require dependable security and request to exit capability. This non handed lock features the Schlage "C" keyway, keyed different operation, and includes [2] change keys for convenient key control. It is configured with a 2-3/4 inch backset and a 4-7/8 inch strike for standard commercial door prep compatibility. Designed as part of the Schlage ND Series, the ND80PD-BRK-RX combines storeroom function performance with durable construction and trusted mechanical reliability.

Features

• ND80PD-BRK-RX cylindrical storeroom lock function is designed for commercial applications requiring secure outside access control.
• Boardwalk lever trim provides the specified lever design for this lockset configuration.
• Request to Exit monitoring is built into the lock to support egress-related signaling applications.
• Schlage "C" keyway is included for keying compatibility with Schlage C section cylinders.
• Keyed different configuration means each lock is furnished with a different operating key.
• [2] change keys are included with the lock.
• 2-3/4 inch backset is specified for this lock preparation.
• 4-7/8 inch strike is included for frame compatibility.
• Grade 1 construction meets heavy-duty commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80PD-BRK-RX storeroom function keeps the outside lever rigid at all times and requires a key for entry, while the inside lever remains free for immediate egress. The integrated request to exit feature is intended for applications where door hardware must communicate door use or egress activity to an access control or monitoring system.

• Outside lever is always rigid.
• Entrance by key only.
• Inside lever always unlocked for immediate egress.
• RX switch monitors inside lever rotation.

Included Components

This lock is supplied with the Boardwalk lever, Schlage "C" keyway cylinder keyed different, [2] change keys, a 2-3/4 inch backset latch configuration, and a 4-7/8 inch strike. Its non handed chassis supports flexible field installation.
