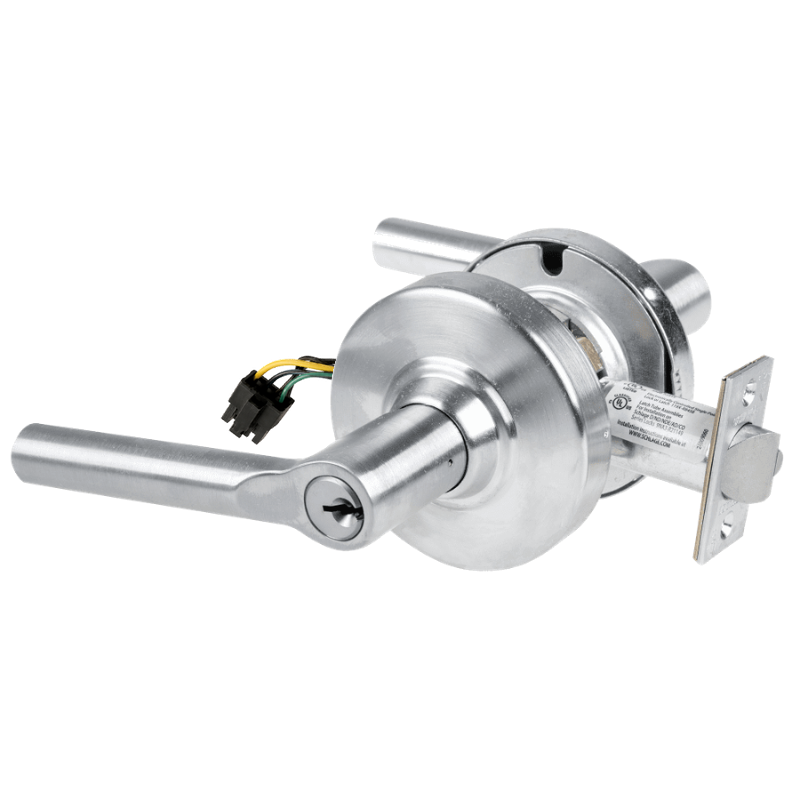

Schlage ND80PD-BRW-RX Cylindrical Storeroom Lock, Broadway Lever, Request to Exit, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-BRW-RX Cylindrical Storeroom Lock combines heavy-duty Grade 1 performance with the clean look of a Broadway lever for demanding commercial openings. This non handed lock features the ND80PD storeroom function with request to exit capability, a Schlage "C" keyway, keyed different cylinder, and [2] change keys included. It is configured with a 2-3/4 inch backset and a 4-7/8 inch strike for standard commercial door prep. Built as part of the Schlage ND Series, this cylindrical lock is designed for strength, security, and reliable operation in high-traffic applications where controlled entry and free egress are required.

Features

• ND80PD cylindrical storeroom lock function is designed for secured entry with free egress.
• Broadway lever trim provides a modern straight-line lever design for commercial doors.
• Request to Exit monitoring supports applications that require signal output during egress operation.
• Schlage "C" keyway is supplied for standard Schlage keying compatibility.
• Keyed different configuration provides an individual key combination for this lock.
• [2] change keys are included with the keyed cylinder.
• 2-3/4 inch backset fits common commercial door preparations.
• 4-7/8 inch strike is included for compatible frame preparation.
• Grade 1 construction meets high-use commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80PD storeroom function keeps the outside lever rigid at all times, allowing entry by key while maintaining immediate exit from the inside. The RX request to exit option adds switch monitoring that signals when the inside lever is operated, making it useful for access control, alarm, and security system integration.

• Outside lever fixed.
• Entrance by key only.
• Inside lever always unlocked.
• RX - Request-to-exit switch monitors inside lever rotation.

Included Components

This lock is supplied with the Schlage "C" keyed different cylinder, [2] change keys, and a 4-7/8 inch strike. It is also configured with a 2-3/4 inch backset and a Broadway lever in a non handed cylindrical lock design.
