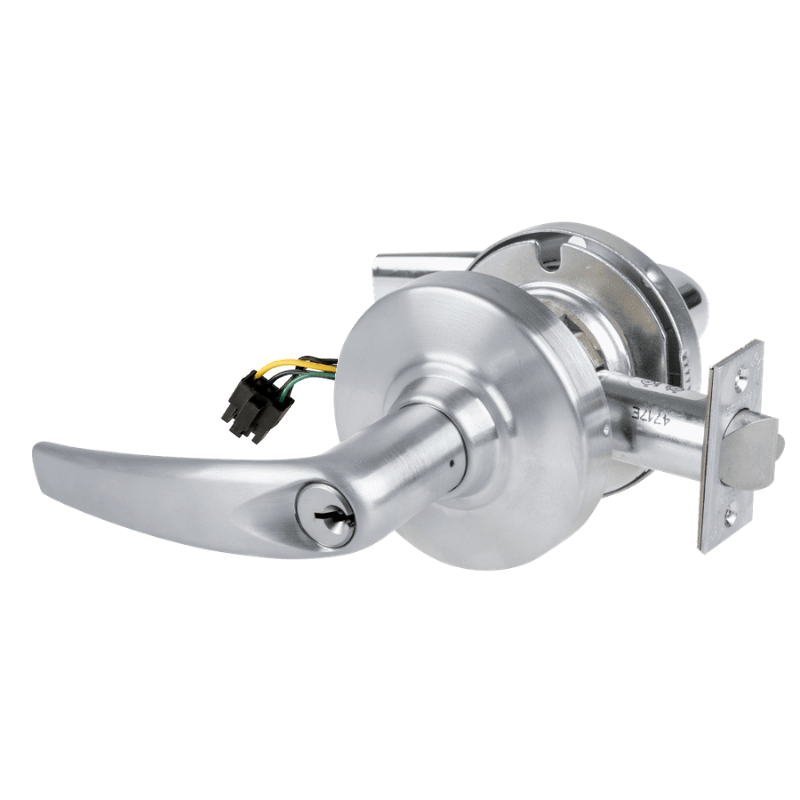

Schlage ND80PD-EL-ATH Cylindrical Electrified Storeroom Lock, Athens Lever, 12-24V VDC, Fail Safe, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EL-ATH Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 solution built for secure access control in commercial openings. This configuration includes the Athens lever, 12-24V VDC operation, and fail safe electrified functionality for applications that require remote release while maintaining storeroom security. It is supplied in the Schlage "C" keyway, keyed different, with [2] change keys included. The lock is configured with a 2-3/4 inch backset, a 4-7/8 inch strike, and a non handed design for installation flexibility. As part of the ND Series, it delivers the durability and performance expected from Schlage cylindrical locks.

Features

• ND80PD-EL storeroom function provides electrified access control in a cylindrical lock format.
• Athens lever trim offers a distinct lever design for commercial applications.
• 12-24V VDC operation supports low-voltage electrified locking systems.
• Fail safe function unlocks upon loss of power.
• Schlage "C" keyway is included for standard Schlage keying compatibility.
• Keyed different configuration provides a unique key combination for the cylinder.
• [2] change keys are included with the lock.
• 2-3/4 inch backset supports standard commercial door preparation.
• 4-7/8 inch strike is included for the specified frame condition.
• Grade 1 construction meets heavy-duty commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80PD-EL electrified storeroom function is designed for controlled entry on doors that remain secure from the outside until access is granted electrically. In fail safe mode, the outside lever is unlocked when power is applied according to the function description in the ND Series catalog, making it suitable for openings tied to access control and life-safety requirements.

• Outside lever is normally locked.
• Latchbolt retracted by key outside or by inside lever/inside thumbturn.
• Inside lever always free for immediate egress.
• Fail safe: outside lever unlocked when power is applied.

Included Components

This lock is supplied with the Athens lever, Schlage "C" keyway cylinder keyed different, [2] change keys, a 2-3/4 inch backset latch, and a 4-7/8 inch strike. Its non handed construction helps simplify ordering and field installation.
