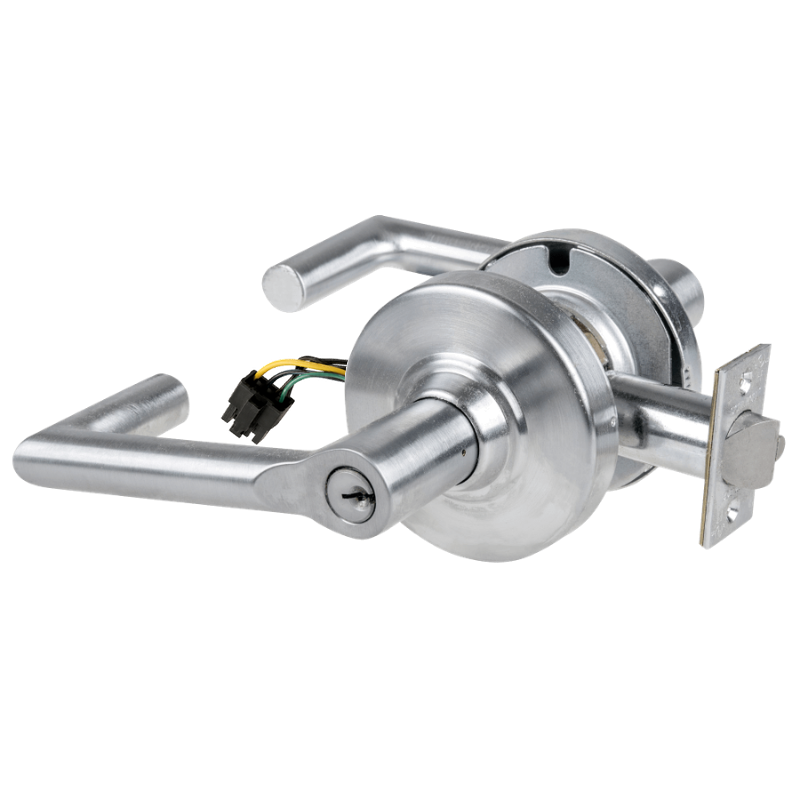

Schlage ND80PD-EL-BRK Cylindrical Electrified Storeroom Lock, Boardwalk Lever, 12-24V VDC, Fail Safe, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80PD-EL-BRK Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lock designed for demanding commercial openings that require remote access control and dependable mechanical security. This configuration includes the Boardwalk lever, 12-24V VDC electrified operation, fail safe functionality, and the Schlage "C" keyway. It is supplied keyed different with [2] change keys, along with a 2-3/4 inch backset and 4-7/8 inch strike for standard commercial door prep. Built as a non handed lock, the ND80PD-EL-BRK offers flexible installation and the durability expected from Schlage ND Series cylindrical locks.
Features
- ND80PD-EL-BRK cylindrical electrified storeroom lock designed for commercial access control applications.
- Boardwalk lever trim provides a modern lever design within the Schlage ND Series platform.
- 12-24V VDC operation supports low-voltage electrified locking applications.
- Fail safe function unlocks upon loss of power for life-safety oriented openings.
- Schlage "C" keyway is included for keying compatibility within Schlage systems.
- Keyed different configuration provides a unique key combination for this lock.
- Includes [2] change keys.
- 2-3/4 inch backset supports common commercial door preparations.
- 4-7/8 inch strike is included for proper frame engagement.
- Grade 1 construction meets high-use commercial performance requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
The ND80PD-EL storeroom function combines electrified control with storeroom security. From the outside, access is controlled electrically, while the inside lever allows free egress at all times. In the fail safe configuration, the outside lever is unlocked when power is lost, making it suitable for openings where code requirements or system design call for unlocking on power failure.
- Outside cylinder retracts latchbolt by key.
- Inside lever always unlocked for immediate egress.
- Outside lever is electrically unlocked when energized.
Included Components
This lockset includes the Schlage ND80PD-EL-BRK cylindrical electrified storeroom lock body, Boardwalk lever trim, Schlage "C" keyway cylinder keyed different, [2] change keys, 2-3/4 inch backset, and 4-7/8 inch strike.
Product Specifications
| Manufacturer | Schlage |
| Series | ND Series |
| Model | ND80PD-EL-BRK |
| Product Type | Cylindrical Electrified Storeroom Lock |
| Lever Design | Boardwalk Lever |
| Voltage | 12-24V VDC |
| Electrical Function | Fail Safe |
| Keyway | Schlage "C" |
| Keying | Keyed Different |
| Included Keys | [2] Change Keys |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Grade | Grade 1 |
| Handing | Non Handed |
| ANSI Number | F109 |
| UL Listing Type | UL listed for 3-hour fire door |
| Origin | Made in USA of domestic and imported materials |
| BAA Qualified | Yes |
| Unit of Measure | Each |
| Limited Warranty | 10 Year mechanical limited warranty, 3 year electro mechanical limited warranty |
| SKU | ND-80PD-EL-BRK |
Technical Specifications
| Lock Function Number | ND80PD-EL |
| ANSI/BHMA Grade | Grade 1 |
| ANSI Function | F109 |
| Input Voltage | 12-24V VDC |
| Backset Dimension | 2-3/4 Inch |
| Strike Dimension | 4-7/8 Inch |
| Door Handing | Non Handed |
| Fire Rating | 3 Hour |
| Latchbolt Throw | 1/2 Inch |
| Door Thickness Range | 1-3/8 Inch to 2-1/8 Inch |
| Cross Bore | 2-1/8 Inch |
| Edge Bore | 1 Inch |
| Rose Diameter | 3-7/16 Inch |
| Lever Projection | 2-13/16 Inch |
| Cylinder Keyway | Schlage "C" |
| Included Keys | 2 Change Keys |
| Electrical Mode | Fail Safe |
