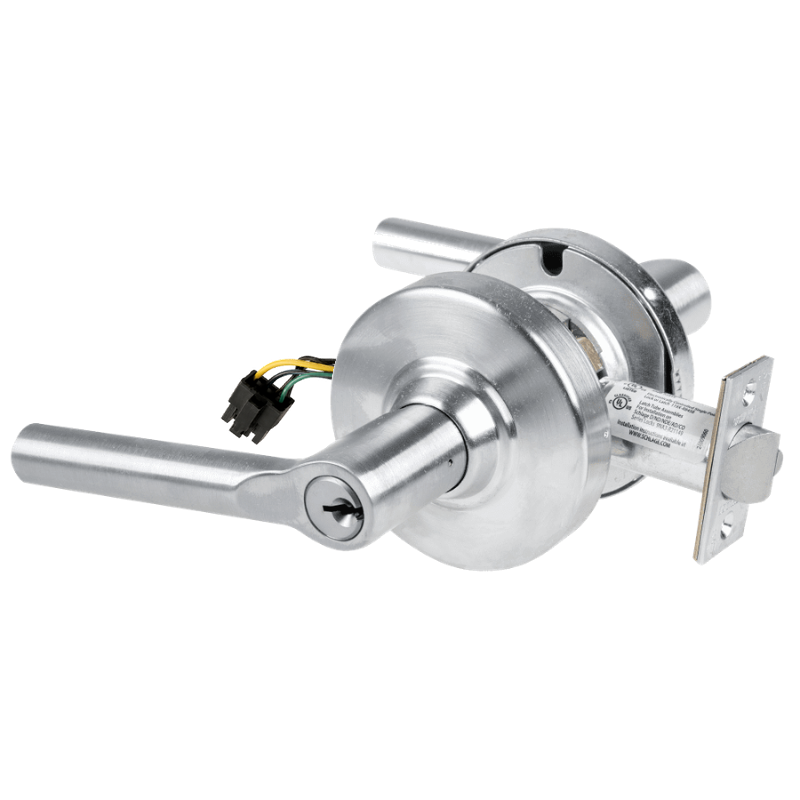

Schlage ND80PD-EL-BRW Cylindrical Electrified Storeroom Lock, Broadway Lever, 12-24V VDC, Fail Safe, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EL-BRW Cylindrical Electrified Storeroom Lock combines heavy-duty Grade 1 performance with electric access control convenience for commercial openings. This configuration includes the Broadway lever, 12-24V VDC operation, fail safe functionality, and the Schlage "C" keyway. It is supplied keyed different with [2] change keys, along with a 2-3/4 inch backset and 4-7/8 inch strike for standard commercial door prep. Built as a non handed cylindrical electrified storeroom lock in the ND Series, this model is designed for dependable use in demanding institutional, office, healthcare, and education environments where security and remote control are both important.

Features

• ND80PD-EL is an electrified cylindrical storeroom lock designed for controlled access applications.
• This lock features the Broadway lever design for a clean, modern commercial appearance.
• 12-24V VDC operation supports flexible low-voltage electrified hardware installations.
• The fail safe function unlocks upon loss of power for applications requiring free egress and controlled security.
• This configuration includes the Schlage "C" keyway.
• It is supplied keyed different for individual keying at the opening.
• [2] change keys are included with the lock.
• The lock is prepared with a 2-3/4 inch backset.
• A 4-7/8 inch strike is included for compatible frame preparation.
• Grade 1 construction provides the highest ANSI/BHMA performance classification for cylindrical locks.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80PD-EL electrified storeroom function is designed for doors that require outside access to be controlled electrically while maintaining immediate egress from the inside. In fail safe operation, the outside lever is unlocked when power is applied according to the catalog function description, making it suitable for systems that must release access under specified power conditions.

• Outside lever is fixed until unlocked by electric power.
• Inside lever always unlocked.
• Latchbolt retracted by key outside or by inside lever.
• Outside lever unlocked by electric power. Inside lever always unlocked.

Included Components

This Schlage ND80PD-EL-BRW lockset includes the Broadway lever trim, Schlage "C" keyway cylinder keyed different, [2] change keys, a 2-3/4 inch backset latch, and a 4-7/8 inch strike as specified in the product configuration.
