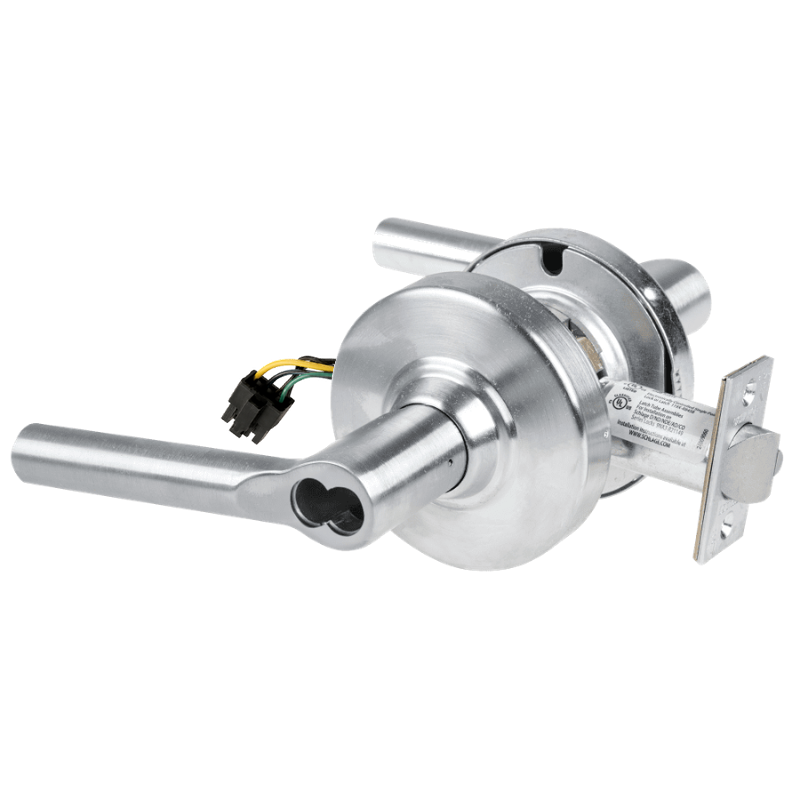

Schlage ND80JD-EL-BRW Cylindrical Electrified Storeroom Lock, Broadway Lever, 12-24V VDC, Fail Safe, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EL-BRW Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lock designed for demanding commercial openings that require dependable access control and durability. This configuration includes the Broadway lever, 12-24V VDC electrified operation, and fail safe functionality for controlled egress applications. It is built to accept a Schlage FSIC full sized interchangeable core and is supplied less core for flexible keying requirements. The lock also includes a 2-3/4 inch backset, 4-7/8 inch strike, and non handed design, making installation and field coordination easier across a wide range of door conditions.

Features

• ND80JD-EL function provides a cylindrical electrified storeroom lock for commercial access control applications.
• Broadway lever design offers a clean, modern lever style within the Schlage ND Series platform.
• 12-24V VDC operation supports low-voltage electrified locking integration.
• Fail safe operation unlocks upon loss of power for applications requiring this mode of security.
• Prepared for a Schlage FSIC full sized interchangeable core for flexible key system management.
• Supplied less core so the interchangeable core can be furnished separately to match the facility keying system.
• Includes a 2-3/4 inch backset for standard commercial door preparation requirements.
• Includes a 4-7/8 inch strike for proper frame preparation compatibility.
• Grade 1 construction meets the highest ANSI/BHMA performance grade for cylindrical locks.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80JD-EL electrified storeroom function is designed for openings that need outside lever control through electrical input while maintaining safe and reliable operation. In fail safe mode, the outside lever unlocks when power is interrupted, making it suitable for applications where the door must release upon power loss. The inside lever remains available for egress, and the non handed chassis simplifies installation.

• Outside lever is normally locked.
• Inside lever always unlocked.
• Outside lever is unlocked by electric current.
• Fail safe locks when energized and unlocks when power is off.

Included Components

This lock is supplied with the Broadway lever trim, a 2-3/4 inch backset, and a 4-7/8 inch strike. It is prepared to accept a Schlage FSIC full sized interchangeable core but is furnished less core, allowing the core to be ordered separately for the required key system.
