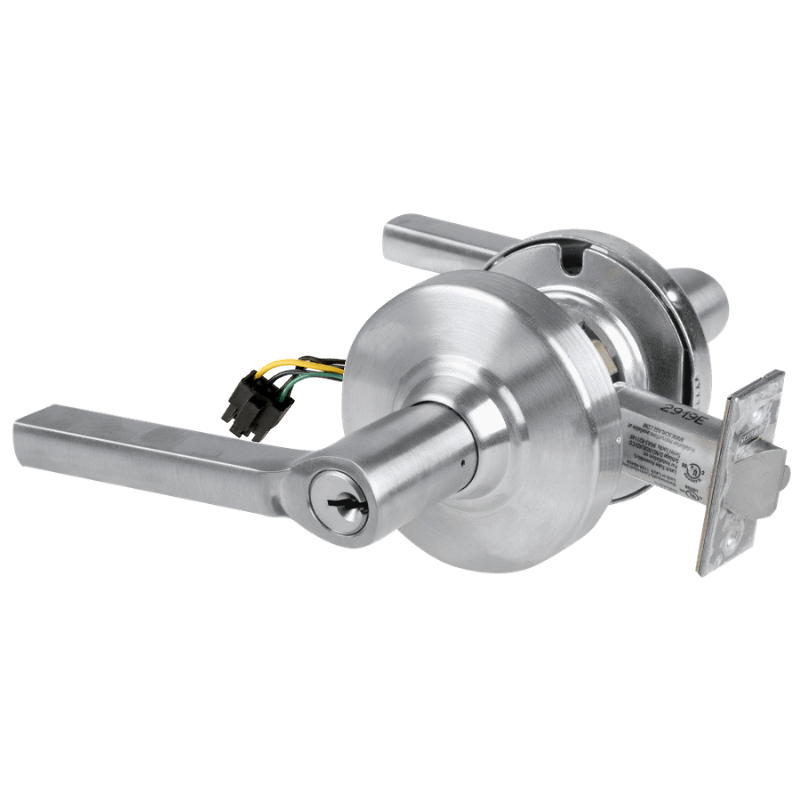

Schlage ND80PD-EL-LAT Cylindrical Electrified Storeroom Lock, Latitude Lever, 12-24V VDC, Fail Safe, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EL-LAT Cylindrical Electrified Storeroom Lock combines heavy-duty Grade 1 performance with the convenience of electrified access control in a non handed cylindrical lockset. This configuration includes the Latitude lever, 12-24V VDC operation, and fail safe functionality for controlled egress and security applications. It is supplied with the Schlage "C" keyway, keyed different, and includes [2] change keys. The lock is configured with a 2-3/4 inch backset and a 4-7/8 inch strike, making it a strong choice for commercial openings that require dependable storeroom function, flexible electrification, and durable ND Series construction.

Features

• ND80PD-EL-LAT is a cylindrical electrified storeroom lock built on Schlage ND Series Grade 1 construction for commercial-duty performance.
• The Latitude lever provides a modern straight lever design suited for institutional, office, and commercial openings.
• Electrified operation supports 12-24V VDC input for integration with access control systems.
• The fail safe configuration unlocks upon loss of power as specified for life safety and controlled access applications.
• This lock is furnished with the Schlage "C" keyway.
• The cylinder is keyed different for individual keying at the opening.
• Includes [2] change keys.
• The lock is configured with a 2-3/4 inch backset.
• A 4-7/8 inch strike is included for the specified door frame preparation.
• Grade 1 certification supports high-use commercial applications.
• The non handed design simplifies installation and field coordination.

Functional Details

The ND80PD-EL electrified storeroom function is designed for access-controlled openings where the outside lever operation is managed electrically while maintaining dependable mechanical security. In fail safe mode, the outside lever is unlocked when power is removed. The inside lever remains free for egress, and the keyed cylinder provides mechanical control as required by the function.

• Outside lever is unlocked by key or by turning inside lever.
• Outside lever is electrically locked and unlocked.
• Inside lever always free for immediate egress.
• Fail safe.

Included Components

This configuration includes the ND80PD-EL-LAT lockset with Latitude lever trim, Schlage "C" keyway cylinder keyed different, [2] change keys, a 2-3/4 inch backset latch arrangement, and a 4-7/8 inch strike.
