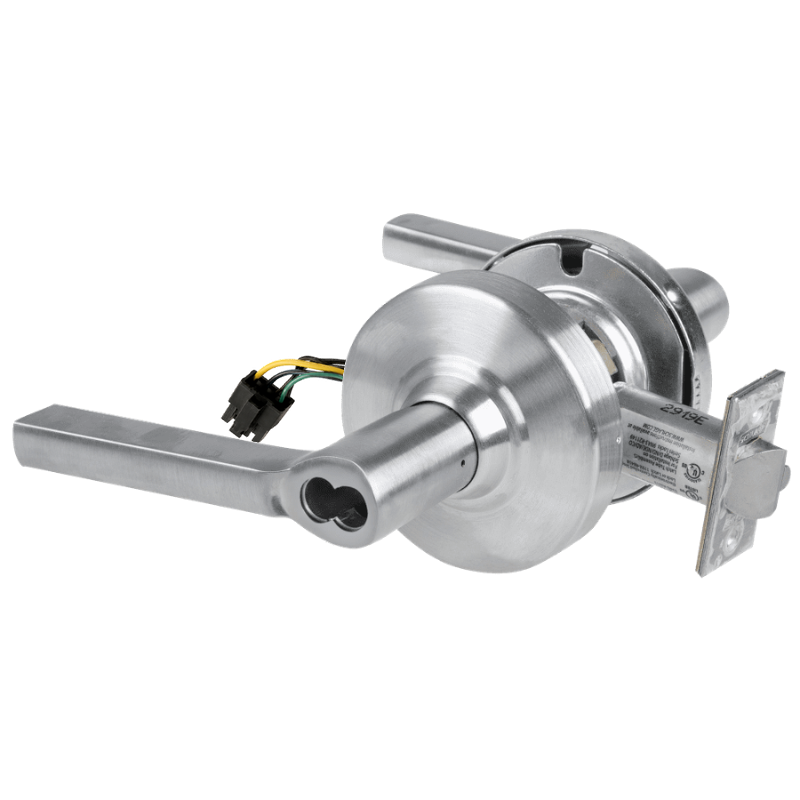

Schlage ND80JD-EL-LAT Cylindrical Electrified Storeroom Lock, Latitude Lever, 12-24V VDC, Fail Safe, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EL-LAT Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lockset built for high-traffic commercial openings that require dependable access control. This configuration combines the ND80JD-EL electrified storeroom function with a modern Latitude lever, 12-24V VDC operation, and fail safe performance for controlled egress and entry. It is prepared for a Schlage FSIC full sized interchangeable core and ships less core, making it suitable for facilities using interchangeable keying systems. This non handed lock includes a 2-3/4 inch backset and 4-7/8 inch strike for a complete, code-conscious opening solution.

Features

• ND80JD-EL electrified storeroom function supports controlled access in commercial applications.
• Latitude lever design provides a clean, contemporary appearance.
• Operates on 12-24V VDC for low-voltage electrified locking applications.
• Fail safe configuration unlocks when power is removed.
• Prepared for a Schlage FSIC full sized interchangeable core for flexible key system management.
• Ships less core so the interchangeable core can be supplied separately to match the facility keying system.
• Includes a 2-3/4 inch backset for standard commercial door preparation.
• Supplied with a 4-7/8 inch strike.
• Grade 1 construction is designed for demanding institutional, commercial, and industrial use.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80JD-EL electrified storeroom function is designed for openings where the outside lever is electrically controlled while the inside lever remains free for egress. In this fail safe configuration, the outside lever unlocks when power is interrupted, making it appropriate for applications where unlocked operation is required upon power loss.

• Outside lever is normally locked by springloaded outer spindle.
• Outside lever is unlocked by key or by rotating inside lever.
• Inside lever always free for immediate egress.
• Outside lever unlocked by electric power. Inside lever always unlocked.
• Fail safe - outside lever unlocked when lock is de-energized.

Included Components

This lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. The lockset includes the specified 2-3/4 inch backset and 4-7/8 inch strike and is built in a non handed configuration for installation flexibility.
