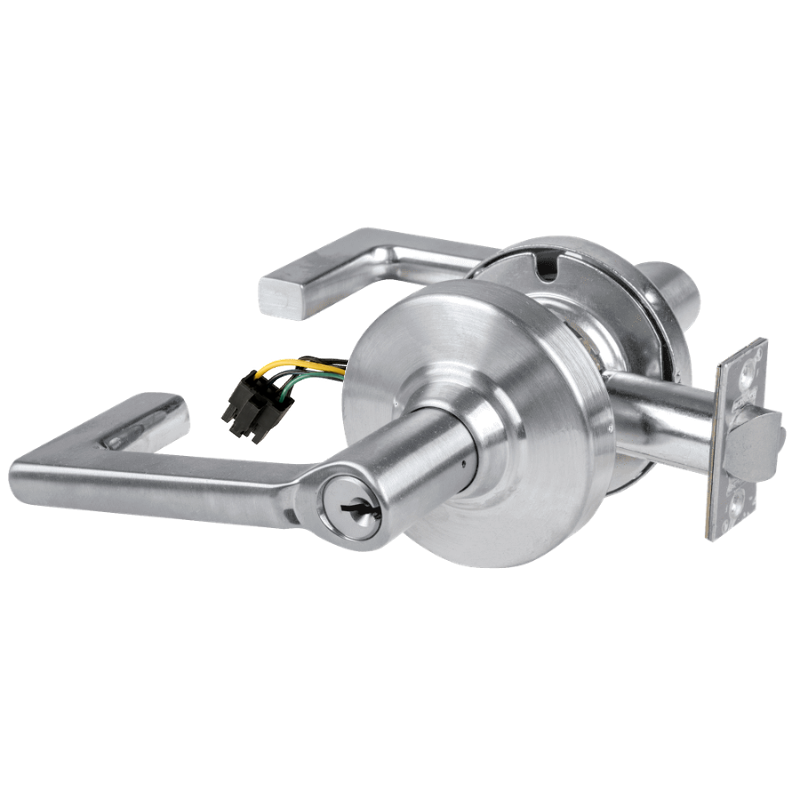

Schlage ND80PD-EL-LON Cylindrical Electrified Storeroom Lock, Longitude Lever, 12-24V VDC, Fail Safe, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EL-LON Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 cylindrical lock built for demanding commercial openings that require controlled access and dependable performance. This configuration includes the Longitude lever, 12-24V VDC electrified operation, fail safe function, Schlage "C" keyway, keyed different cylinder, and [2] change keys. It is supplied with a 2-3/4 inch backset and 4-7/8 inch strike, and its non handed design helps simplify installation and field coordination. As part of the ND Series, this lock is designed for strength, durability, and consistent operation in high-traffic applications.

Features

• ND80PD-EL-LON electrified storeroom lock function provides controlled access in a commercial cylindrical lock format.
• Longitude lever trim offers a modern lever design within the Schlage ND Series platform.
• 12-24V VDC operation supports low-voltage electrified hardware applications.
• Fail safe operation unlocks upon loss of power for applications requiring free access during power interruption.
• Schlage "C" keyway is included for standard Schlage keying compatibility.
• Keyed different configuration provides a unique keying arrangement for the lock cylinder.
• [2] change keys are supplied with the lock.
• 2-3/4 inch backset is included for door preparation compatibility.
• 4-7/8 inch strike is furnished for frame installation.
• Grade 1 construction meets heavy-duty commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed to keep the outside lever rigid when secure while allowing electrical control of access. In fail safe mode, the lock unlocks when power is interrupted, making it suitable for openings where the door must allow access during a power loss. The non handed chassis also helps streamline installation across multiple door handings.

• Outside lever is normally rigid.
• Entering by key retracts latch at all times.
• Inside lever always free for immediate egress.
• Outside lever unlocks by electric release.
• Fail safe: outside lever is unlocked when power is off.

Included Components

This lockset includes the Schlage "C" keyed different cylinder, [2] change keys, a 2-3/4 inch backset latch, and a 4-7/8 inch strike. It is furnished as a non handed cylindrical electrified storeroom lock with Longitude lever trim.
