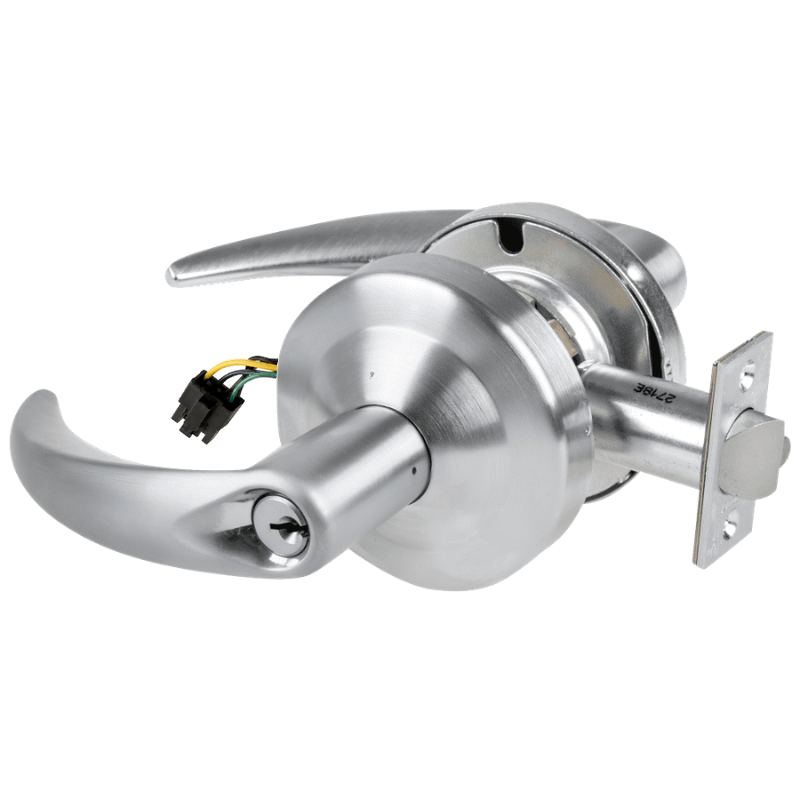

Schlage ND80PD-EL-OME Cylindrical Electrified Storeroom Lock, Omega Lever, 12-24V VDC, Fail Safe, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EL-OME Cylindrical Electrified Storeroom Lock combines Grade 1 durability with electrified access control performance for demanding commercial openings. This configuration includes the Omega lever, 12-24V VDC operation, and fail safe functionality for controlled egress and entry applications. It is supplied with the Schlage "C" keyway, keyed different, and includes [2] change keys for day-to-day key management. The lock is built with a 2-3/4 inch backset and 4-7/8 inch strike, and its non handed design helps simplify installation across a range of door conditions. The ND80PD-EL-OME is a dependable choice where security, flexibility, and heavy-duty performance matter.

Features

• ND80PD-EL-OME cylindrical electrified storeroom lock built for commercial-duty applications.
• Omega lever trim provides a clean, durable lever design for frequent use openings.
• Electrified operation supports 12-24V VDC wiring requirements.
• Fail safe function unlocks upon loss of power for applications requiring this mode of operation.
• Schlage "C" keyway is included for standard Schlage cylinder compatibility.
• Keyed different configuration provides an individual keying arrangement.
• Supplied with [2] change keys.
• Prepared with a 2-3/4 inch backset.
• Includes a 4-7/8 inch strike.
• Grade 1 construction meets heavy-duty performance requirements.
• Non handed design allows installation without regard to door handing.

Functional Details

The ND80PD-EL electrified storeroom function is designed for controlled access openings that require electrical locking control combined with mechanical key override. In this fail safe configuration, the outside lever is unlocked when power is removed and remains secured when power is applied, while the inside lever allows free egress at all times. The non handed chassis also helps streamline field installation.

• Outside lever is unlocked by key or by rotating inside lever.
• Inside lever always unlocked.
• Outside lever is locked by electric strike.
• Fail safe.

Included Components

This lockset includes the Omega lever trim, Schlage "C" keyway cylinder keyed different, [2] change keys, a 2-3/4 inch backset latch arrangement, and a 4-7/8 inch strike.
