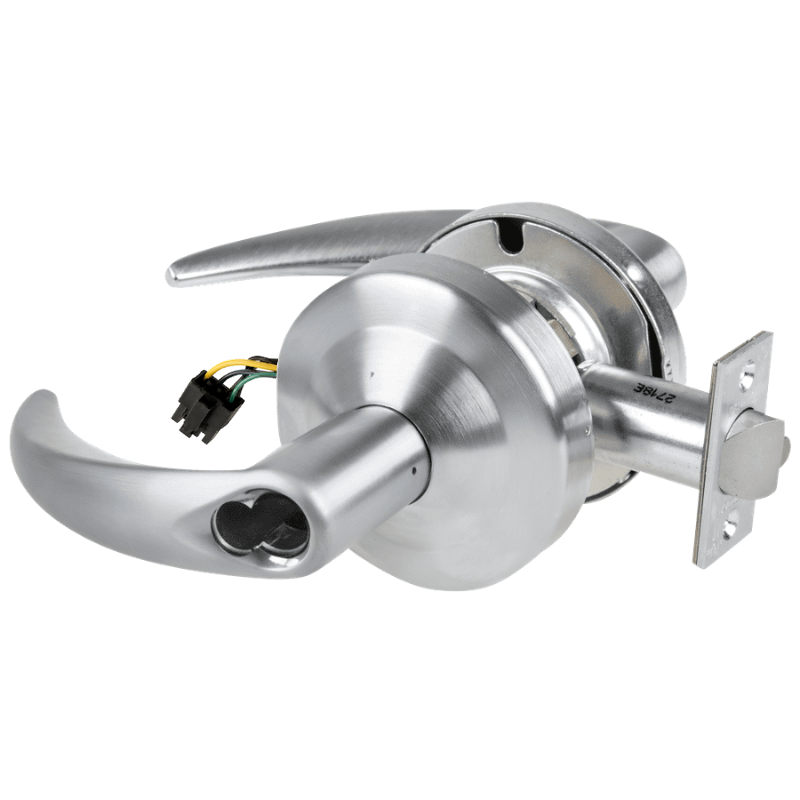

Schlage ND80JD-EL-OME Cylindrical Electrified Storeroom Lock, Omega Lever, 12-24V VDC, Fail Safe, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EL-OME Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 locking solution built for demanding commercial openings. This configuration includes the Omega lever, 12-24V VDC operation, fail safe function, and Schlage FSIC full sized interchangeable core preparation supplied less core for flexible keying. It is set up with a 2-3/4 inch backset and 4-7/8 inch strike, making it suitable for standard commercial door applications. As a non handed lock, the ND80JD-EL-OME simplifies installation while delivering the durability, electrified access control capability, and storeroom security expected from the Schlage ND Series.

Features

• ND80JD-EL-OME is a cylindrical electrified storeroom lock designed for commercial applications requiring remote access control and Grade 1 durability.
• The Omega lever design provides a distinctive lever style within the Schlage ND Series platform.
• Electrified operation supports 12-24V VDC input for integration with access control systems.
• The fail safe function unlocks when power is applied and returns to the secure state when power is removed according to the electrified configuration.
• This lock is prepared for a Schlage FSIC full sized interchangeable core and is supplied less core.
• A 2-3/4 inch backset is included for standard commercial door preparation.
• The 4-7/8 inch strike is provided for compatible frame installation.
• Grade 1 construction meets high-use commercial performance requirements.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80JD-EL storeroom electrified function is intended for controlled access openings where the outside lever operation is managed electrically while the inside lever allows egress. In this fail safe configuration, the lock changes state with power to support life-safety and access control requirements. The non handed chassis also helps streamline field installation.

• Outside lever is normally locked.
• Inside lever always unlocked.
• Outside lever is unlocked by electric power. Key outside retracts latchbolt.
• Fail safe.

Included Components

This Schlage ND80JD-EL-OME lock is supplied with the Omega lever trim, Schlage FSIC full sized interchangeable core preparation, less core configuration, 2-3/4 inch backset, and 4-7/8 inch strike. The lock is non handed for easier installation across door handings.
