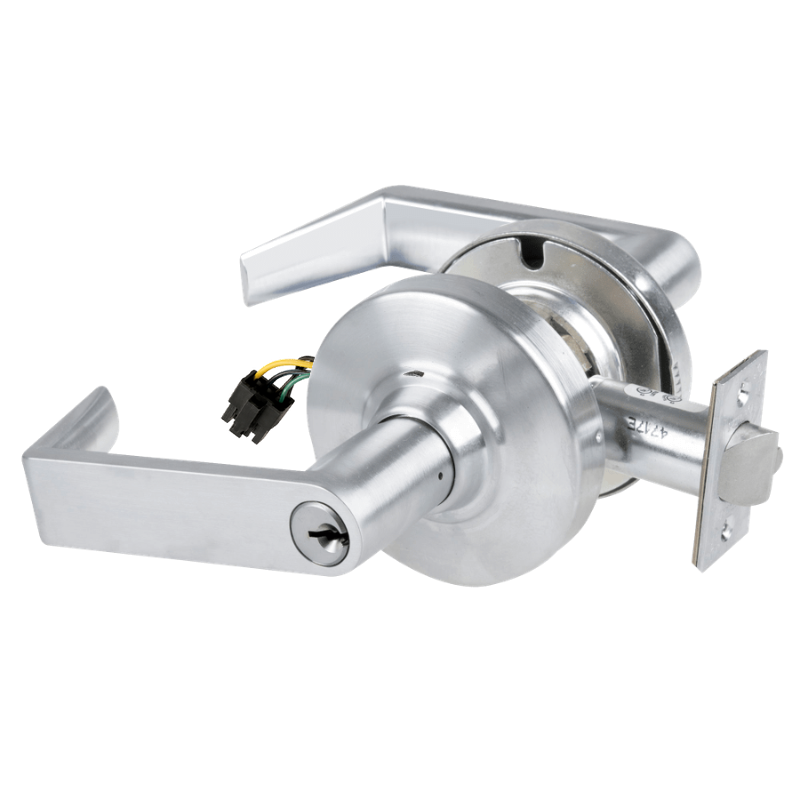

Schlage ND80PD-EL-RHO Cylindrical Electrified Storeroom Lock, Rhodes Lever, 12-24V VDC, Fail Safe, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80PD-EL-RHO Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lock built for demanding commercial openings that need controlled access and dependable performance. This configuration includes the Rhodes lever design, 12-24V VDC electrified operation, fail safe function, and Schlage "C" keyway. It is supplied keyed different with [2] change keys, plus a 2-3/4 inch backset and 4-7/8 inch strike for standard commercial door prep. As a non handed cylindrical lock in the Schlage ND Series, the ND80PD-EL-RHO is designed for flexible installation, strong durability, and reliable electrified storeroom security.
Features
- ND80PD-EL-RHO is a cylindrical electrified storeroom lock designed for commercial applications requiring remote access control.
- This lock includes the Rhodes lever trim for a clean, durable lever design.
- The electrified chassis operates on 12-24V VDC power.
- Fail safe operation keeps the outside lever unlocked when power is interrupted.
- This configuration uses the Schlage "C" keyway.
- The lock is keyed different and includes [2] change keys.
- A 2-3/4 inch backset is included for door preparation compatibility.
- The package includes a 4-7/8 inch strike.
- Grade 1 construction supports high-use commercial openings.
- The non handed design allows installation on either right-hand or left-hand doors.
Functional Details
The ND80PD-EL storeroom function provides electrically controlled outside lever operation while maintaining secure mechanical performance. In fail safe mode, the outside lever remains unlocked when power is lost, making it suitable for openings where free egress and unlocked entry on power loss are required by the application.
- Outside lever is locked and unlocked by a remote release.
- Inside lever always unlocked.
- Latchbolt operated by lever from either side unless outside lever is electrically locked.
- Outside lever unlocked in case of power failure.
Included Components
This Schlage ND80PD-EL-RHO configuration includes the lock chassis, Rhodes lever trim, Schlage "C" keyway cylinder keyed different, [2] change keys, 2-3/4 inch backset, and 4-7/8 inch strike.
Product Specifications
| Manufacturer | Schlage |
| Series | ND Series |
| Model | ND80PD-EL-RHO |
| Product Type | Cylindrical Electrified Storeroom Lock |
| Lever Design | Rhodes Lever |
| Voltage | 12-24V VDC |
| Function | Fail Safe |
| Keyway | Schlage "C" |
| Keying | Keyed Different |
| Keys Included | [2] Change Keys |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Grade | Grade 1 |
| Handing | Non Handed |
| SKU | ND-80PD-EL-RHO |
| ANSI Number | F80PD |
| UL Listing Type | UL listed for 3-hour fire door |
| BAA Qualified | Yes |
| Origin | Made in USA of domestic and imported materials |
| Unit of Measure | Each |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
Technical Specifications
| ANSI Function Number | F80PD |
| Voltage Range | 12-24V VDC |
| Backset Dimension | 2-3/4 Inch |
| Strike Size | 4-7/8 Inch |
| Door Thickness Range | 1-5/8 Inch to 2-1/8 Inch |
| Cross Bore | 2-1/8 Inch |
| Edge Bore | 1 Inch |
| Latch Front | 1-1/8 Inch x 2-1/4 Inch |
| Strike Dimensions | 1-1/4 Inch x 4-7/8 Inch |
| UL Fire Rating | 3 Hour |
| Cycle Test | 3,100,000 cycles |
| Grade Classification | ANSI/BHMA A156.2, Series 4000, Grade 1 |
| Handing | Non Handed |
| Lever Style | Rhodes (RHO) |
| Electrified Function Type | Fail Safe |
