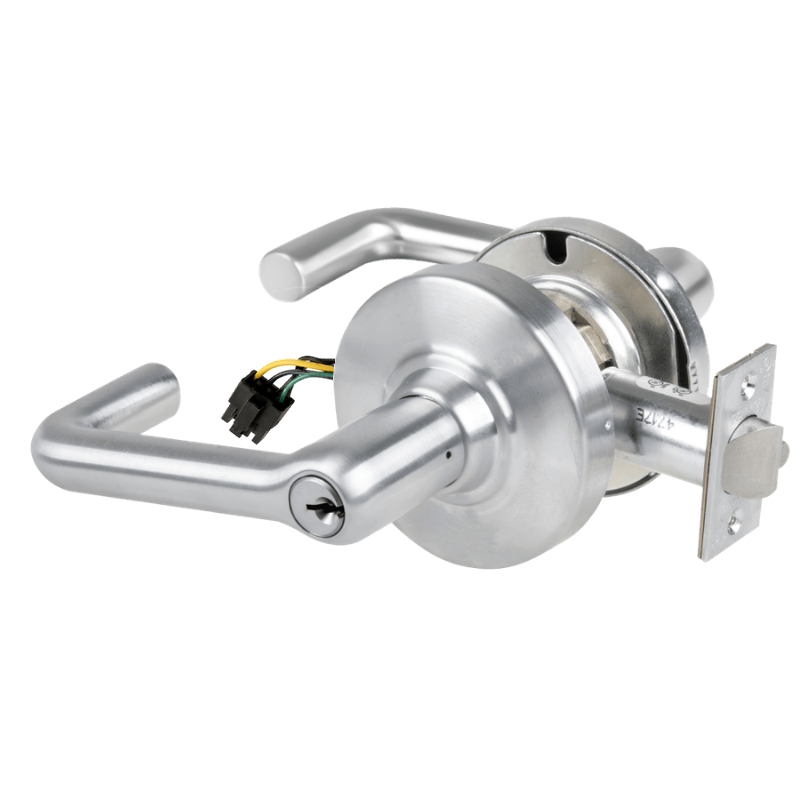

Schlage ND80PD-EL-TLR Cylindrical Electrified Storeroom Lock, Tubular Lever, 12-24V VDC, Fail Safe, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EL-TLR Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 solution built for secure commercial openings that require reliable electric access control. This ND Series lock features a tubular lever design, 12-24V VDC operation, and fail safe functionality for controlled egress and entry applications. It is supplied with the Schlage "C" keyway, keyed different, and includes [2] change keys for day-to-day key management. The lock is configured with a 2-3/4 inch backset, a 4-7/8 inch strike, and a non handed design that helps simplify installation across a range of door applications.

Features

• ND80PD-EL-TLR electrified storeroom lock function supports access control applications with fail safe operation.
• Tubular lever trim provides a familiar cylindrical lock format for commercial openings.
• Operates on 12-24V VDC power for flexible low-voltage integration.
• Fail safe configuration unlocks when power is lost.
• Supplied with the Schlage "C" keyway for Schlage cylinder compatibility.
• Keyed different configuration provides a unique keying combination for the lock.
• Includes [2] change keys.
• Built with a 2-3/4 inch backset.
• Includes a 4-7/8 inch strike.
• Grade 1 construction meets high-use commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80PD-EL-TLR electrified storeroom function is designed for doors that need outside access controlled electrically while maintaining secure storeroom behavior. As a fail safe lock, the outside lever unlocks when power is interrupted, making it suitable for applications where the opening must release upon loss of power. The non handed chassis and cylindrical design also help streamline field installation.

• Outside lever is unlocked by key or by electrically unlocking outside lever momentarily or continuously. Inside lever always unlocked.
• Fail safe - outside lever is unlocked when power is off.

Included Components

This lock is furnished keyed different with a Schlage "C" keyway and includes [2] change keys. It is also configured with a 2-3/4 inch backset and a 4-7/8 inch strike as specified in the title.
