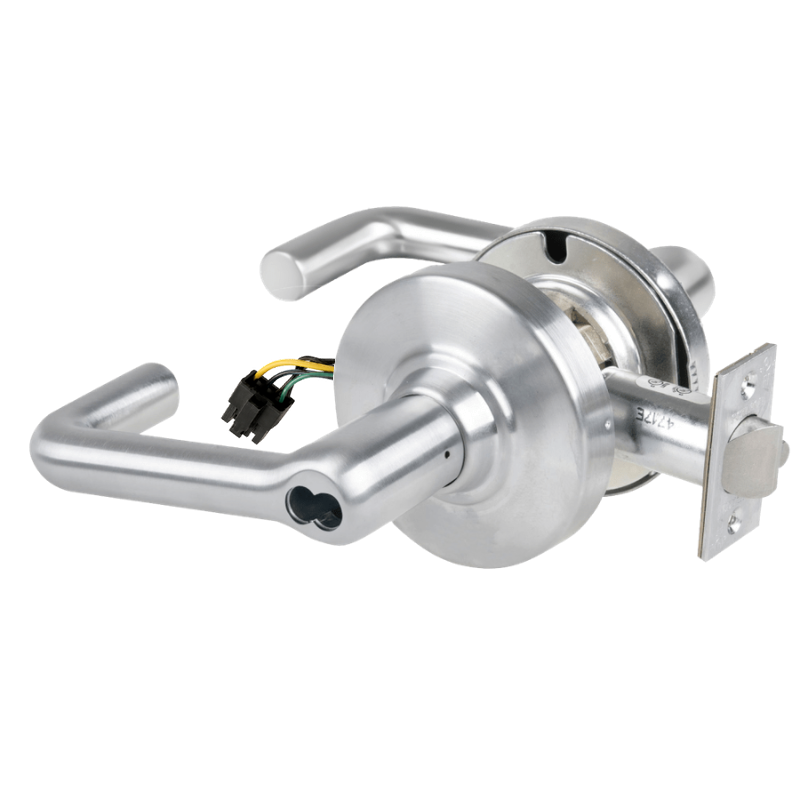

Schlage ND80JD-EL-TLR Cylindrical Electrified Storeroom Lock, Tubular Lever, 12-24V VDC, Fail Safe, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80JD-EL-TLR Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lock built for demanding commercial openings that require dependable access control and durability. This configuration features a tubular lever design, 12-24V VDC operation, and fail safe functionality for electrified security applications. It is prepared for a Schlage FSIC full sized interchangeable core and is supplied less core for keying flexibility. The lock includes a 2-3/4 inch backset and 4-7/8 inch strike, and its non handed construction helps simplify installation while supporting a wide range of door applications.
Features
- ND80JD-EL-TLR cylindrical electrified storeroom lock supports controlled access in commercial applications.
- Tubular lever trim provides a familiar lever-operated design for institutional and commercial doors.
- Operates on 12-24V VDC for compatibility with common low-voltage access control systems.
- Fail safe operation unlocks upon loss of power for applications where free egress or power-loss release is required.
- Prepared for a Schlage FSIC full sized interchangeable core for flexible key system management.
- Supplied less core so the interchangeable core can be furnished separately to match existing keying requirements.
- Configured with a 2-3/4 inch backset for standard commercial door preparation.
- Includes a 4-7/8 inch strike for compatible frame installation.
- Grade 1 construction meets high-performance commercial hardware standards.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
This electrified storeroom function is designed for access-controlled openings where the outside lever is managed electrically while the inside lever allows free egress. In fail safe mode, the lock releases when power is interrupted, making it suitable for openings that must unlock during a power loss.
- Outside lever is fixed until unlocked by electric power.
- Inside lever always unlocked for immediate egress.
- Fail safe - outside lever unlocked when power is off.
Included Components
This ND Series lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. The lock is configured with a 2-3/4 inch backset and includes a 4-7/8 inch strike.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80JD-EL-TLR |
| Product Type | Cylindrical Electrified Storeroom Lock |
| Lever Design | Tubular Lever |
| Function | Electrified Storeroom, Fail Safe |
| Keying Format | Schlage FSIC Full Sized Interchangeable Core |
| Core Included | Less Core |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Handing | Non Handed |
| Grade | Grade 1 |
| ANSI Number | ANSI A156.2, Series 4000, Grade 1 |
| UL Listing Type | UL listed for 3-hour fire door |
| Unit of Measure | Each |
| Origin | Made in USA of domestic and imported materials |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year mechanical limited warranty, 3 year electro mechanical limited warranty |
| SKU | ND-80JD-EL-TLR |
Technical Specifications
| Voltage | 12-24V VDC |
|---|---|
| Lock Grade | Grade 1 |
| ANSI Standard | A156.2 |
| ANSI Series | 4000 |
| Backset Dimension | 2-3/4 Inch |
| Strike Dimension | 4-7/8 Inch |
| Door Thickness | 1-3/8 Inch to 2-1/8 Inch |
| Cross Bore | 2-1/8 Inch |
| Edge Bore | 1 Inch |
| Latch Front | 1-1/8 Inch x 2-1/4 Inch |
| Strike Size | 1-1/4 Inch x 4-7/8 Inch |
| Fire Rating | 3 Hour |
| Cycle Testing | 3,100,000 cycles |
| Handing | Non Handed |
| Core Format | FSIC Full Sized Interchangeable Core |
| Electrical Function | Fail Safe |
