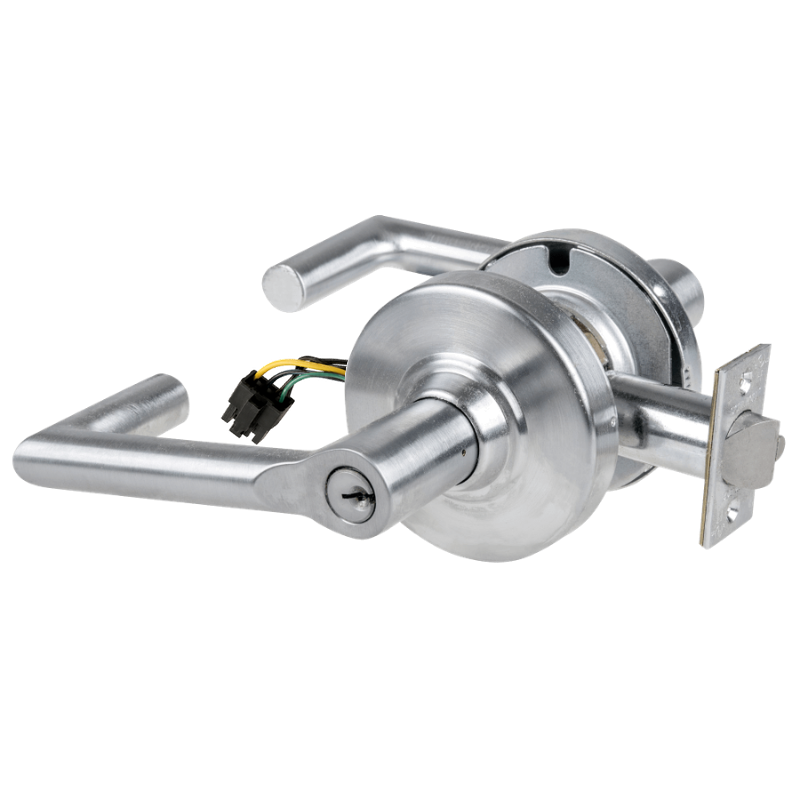

Schlage ND80PD-EU-BRK Cylindrical Electrified Storeroom Lock, Boardwalk Lever, 12-24V VDC, Fail Secure, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EU-BRK Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 solution built for secure commercial openings that require dependable access control. This configuration includes the Boardwalk lever, 12-24V VDC operation, and fail secure functionality for controlled entry while maintaining mechanical egress. It is supplied with the Schlage "C" keyway, keyed different, and includes [2] change keys for day-to-day key management. With a 2-3/4 inch backset, 4-7/8 inch strike, and non handed design, this ND Series lock is well suited for demanding applications where durability, flexibility, and code-compliant performance matter.

Features

• ND80PD-EU-BRK electrified storeroom lock combines Schlage ND Series cylindrical construction with remote access control capability.
• Boardwalk lever trim provides the specified lever design for this commercial lockset configuration.
• 12-24V VDC input supports low-voltage electrified operation.
• Fail secure operation keeps the outside lever locked when power is removed.
• Schlage "C" keyway is included for compatibility with Schlage conventional key systems.
• Keyed different cylinder provides an individual key combination for this lock.
• Supplied with [2] change keys for standard keyed operation.
• 2-3/4 inch backset fits the specified door preparation.
• 4-7/8 inch strike is included for the matching frame strike requirement.
• Grade 1 construction meets high-use commercial performance standards.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed for openings that need controlled outside access with free egress from the inside. In fail secure mode, the outside lever remains locked during a power loss, while electrical actuation allows authorized entry when power is applied. The inside lever remains free for immediate exit.

• Outside lever is normally locked.
• Inside lever always free for immediate egress.
• Turning inside lever retracts latchbolt and deadlocking latchbolt.
• Outside lever is unlocked by key or by electrical actuation.
• Fail secure.

Included Components

This configuration includes the ND80PD-EU-BRK lock body, Boardwalk lever trim, Schlage "C" keyed cylinder keyed different, [2] change keys, 2-3/4 inch backset, and 4-7/8 inch strike as specified.
