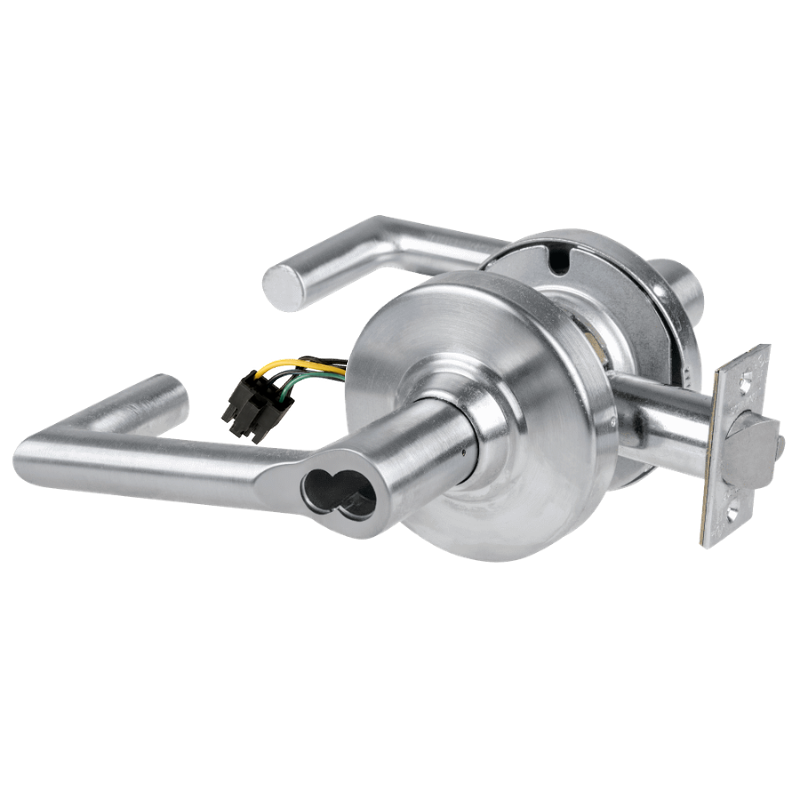

Schlage ND80JD-EU-BRK Cylindrical Electrified Storeroom Lock, Boardwalk Lever, 12-24V VDC, Fail Secure, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EU-BRK Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 solution built for controlled access openings that require dependable electrified operation. This configuration includes the Boardwalk lever, 12-24V VDC operation, and fail secure functionality for applications where the outside lever remains locked during power loss. It is prepared for a Schlage FSIC full sized interchangeable core and is supplied less core for keying flexibility. This non handed lock also includes a 2-3/4 inch backset and 4-7/8 inch strike, making it a practical choice for commercial doors that demand strength, security, and serviceability.

Features

• ND80JD-EU electrified storeroom lock function provides controlled access with remote electrical operation.
• Boardwalk lever design offers a modern lever style within the Schlage ND Series platform.
• 12-24V VDC operation supports low-voltage electrified hardware applications.
• Fail secure operation keeps the outside lever locked when power is removed.
• Prepared for a Schlage FSIC full sized interchangeable core for convenient core changes.
• Supplied less core so the interchangeable core can be furnished separately to match the key system.
• 2-3/4 inch backset fits standard commercial door preparations requiring the longer backset.
• 4-7/8 inch strike is included for proper frame engagement.
• Grade 1 construction is designed for high-use commercial openings.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed for openings that need remote access control without sacrificing security. In fail secure mode, the outside lever stays locked when power is off, while electrical power momentarily unlocks the outside lever for authorized entry. The inside lever remains free for egress, supporting safe exit from the secured side.

• Outside lever is normally locked.
• Latchbolt operated by key in outside lever or by inside lever.
• Inside lever always unlocked.
• Push button on inside locks outside lever until unlocked by key or by rotating inside lever.
• Turning inside lever or closing door releases button automatically.
• Inside lever is always free for immediate egress.

Included Components

This lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. It is configured with a 2-3/4 inch backset and a 4-7/8 inch strike, and its non handed construction helps simplify ordering and installation.
