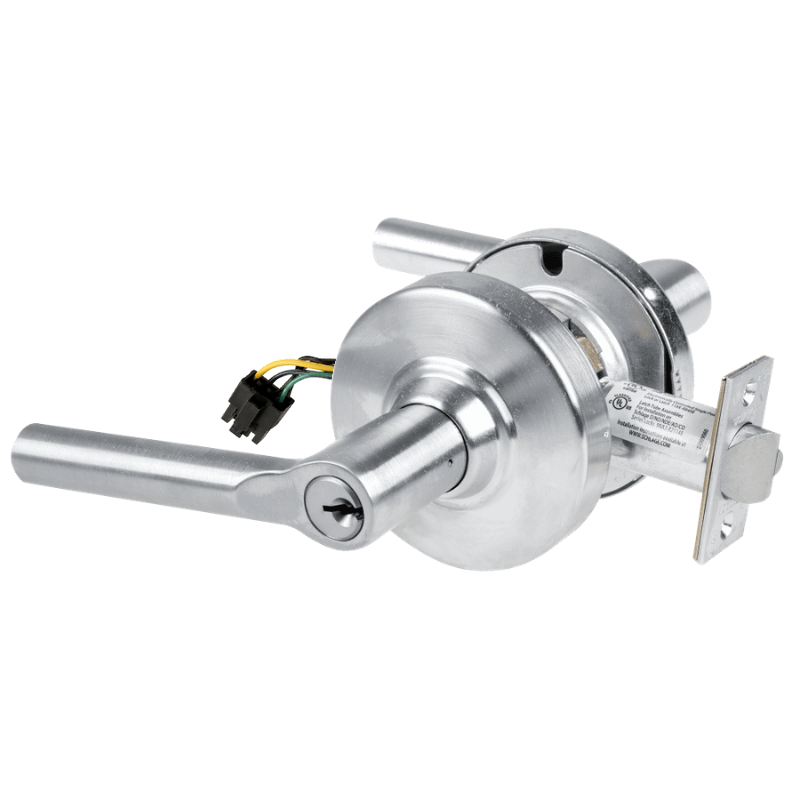

Schlage ND80PD-EU-BRW Cylindrical Electrified Storeroom Lock, Broadway Lever, 12-24V VDC, Fail Secure, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EU-BRW Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 solution built for secure commercial openings that require reliable access control and key operation. This configuration includes the Broadway lever, 12-24V VDC electrified operation, fail secure function, and Schlage "C" keyway keyed different with [2] change keys. It is supplied with a 2-3/4 inch backset and 4-7/8 inch strike, and its non handed design helps simplify installation across a range of door applications. As part of the Schlage ND Series, this cylindrical electrified storeroom lock is engineered for strength, durability, and dependable performance in demanding environments.

Features

• ND80PD-EU is a cylindrical electrified storeroom lock designed for controlled commercial access applications.
• The Broadway lever trim provides a clean, modern lever design from the Schlage ND Series.
• 12-24V VDC operation supports low-voltage electrified hardware applications.
• The fail secure function keeps the outside lever locked during power loss while allowing electrical release when energized.
• This lock is furnished with the Schlage "C" keyway.
• Keyed different cylinders provide individual keying for the opening.
• [2] change keys are included with the lock.
• A 2-3/4 inch backset is included for standard commercial door preparation requirements.
• The lock includes a 4-7/8 inch strike.
• Grade 1 construction meets high-performance commercial hardware standards.
• The non handed design allows installation without regard to door hand.

Functional Details

The ND80PD-EU electrified storeroom function is designed for access control applications where the outside lever remains rigid in the locked condition and becomes operable when electrically released. In fail secure mode, the lock stays secure during a power interruption, while the inside lever remains free for egress. This makes it well suited for commercial doors that need controlled entry with safe exit.

• Outside lever is fixed rigid at all times.
• Entrance by key only.
• Inside lever always unlocked.
• Electrically unlocks outside lever.
• Fail secure.

Included Components

This Schlage ND80PD-EU-BRW lockset includes the Broadway lever trim, Schlage "C" keyed different cylinder, [2] change keys, a 2-3/4 inch backset latch, and a 4-7/8 inch strike. The non handed chassis helps streamline field installation.
