Description

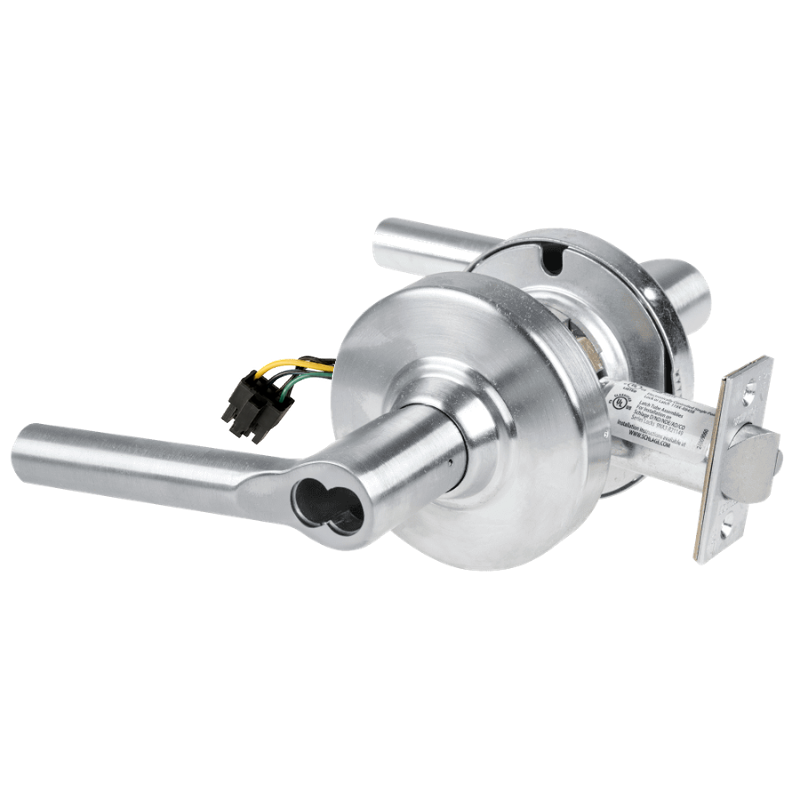

Schlage ND80JD-EU-BRW Cylindrical Electrified Storeroom Lock, Broadway Lever, 12-24V VDC, Fail Secure, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80JD-EU-BRW Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lockset built for demanding commercial openings that require controlled access and dependable performance. This configuration includes the Broadway lever, 12-24V VDC electrified operation, and fail secure function for secure entry management. It is prepared for a Schlage FSIC full sized interchangeable core and ships less core, making it suitable for facilities using interchangeable key systems. With a 2-3/4 inch backset, 4-7/8 inch strike, and non handed design, this ND Series lock offers durable installation flexibility and trusted Schlage quality.
Features
- ND80JD-EU function provides a cylindrical electrified storeroom lock for controlled commercial access applications.
- Broadway lever trim offers a clean, modern lever design within the Schlage ND Series.
- Operates on 12-24V VDC to support electrified locking integration.
- Fail secure operation keeps the outside lever locked when power is removed.
- Prepared for a Schlage FSIC full sized interchangeable core for facilities using interchangeable core keying systems.
- Ships less core so the interchangeable core can be supplied separately to match the key system.
- Includes a 2-3/4 inch backset for compatible door preparation.
- Includes a 4-7/8 inch strike for proper frame engagement.
- Grade 1 construction meets heavy-duty commercial performance requirements.
- Non handed design allows installation on either right hand or left hand doors.
Functional Details
The ND80JD-EU electrified storeroom function is designed for openings that need remote access control while maintaining security on the outside lever. In fail secure mode, the outside lever remains locked during a loss of power, while authorized electrical input allows access. This makes it well suited for secure commercial doors tied into access control systems.
- Outside cylinder retracts latchbolt by key.
- Inside lever always unlocked.
- Outside lever is locked by default.
- Turning inside lever retracts latchbolt and unlatches door.
- Outside lever is unlocked by electric power.
- Fail secure.
Included Components
This lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. The listed configuration also includes the Broadway lever, 2-3/4 inch backset, and 4-7/8 inch strike.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80JD-EU-BRW |
| Product Type | Cylindrical Electrified Storeroom Lock |
| Lever Design | Broadway Lever |
| Function | Electrified Storeroom, Fail Secure |
| Core Type | Schlage FSIC Full Sized Interchangeable Core |
| Core Included | Less Core |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Grade | ANSI/BHMA Grade 1 |
| Handing | Non Handed |
| SKU | ND-80JD-EU-BRW |
| Unit of Measure | Each |
| ANSI Number | F07 |
| UL Listing Type | UL listed for 3-hour fire door |
| Origin | Made in USA |
| BAA Qualified | Yes |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
Technical Specifications
| Voltage | 12-24V VDC |
|---|---|
| Backset Dimension | 2-3/4 Inch |
| Strike Size | 4-7/8 Inch |
| Door Thickness Range | 1-5/8 Inch to 2-1/8 Inch |
| Crossbore | 2-1/8 Inch |
| Edge Bore | 1 Inch |
| Latch Front | 1-1/8 Inch x 2-1/4 Inch |
| Strike Dimension | 1-1/4 Inch x 4-7/8 Inch |
| Latch Throw | 1/2 Inch |
| Cylinder Format | FSIC Full Sized Interchangeable Core |
| Handing | Non Handed |
| Function Number | 80 |
| Electrical Configuration | EU |
| ANSI/BHMA Grade | Grade 1 |
| ANSI Function | F07 |
| Fire Rating | 3 Hour |
