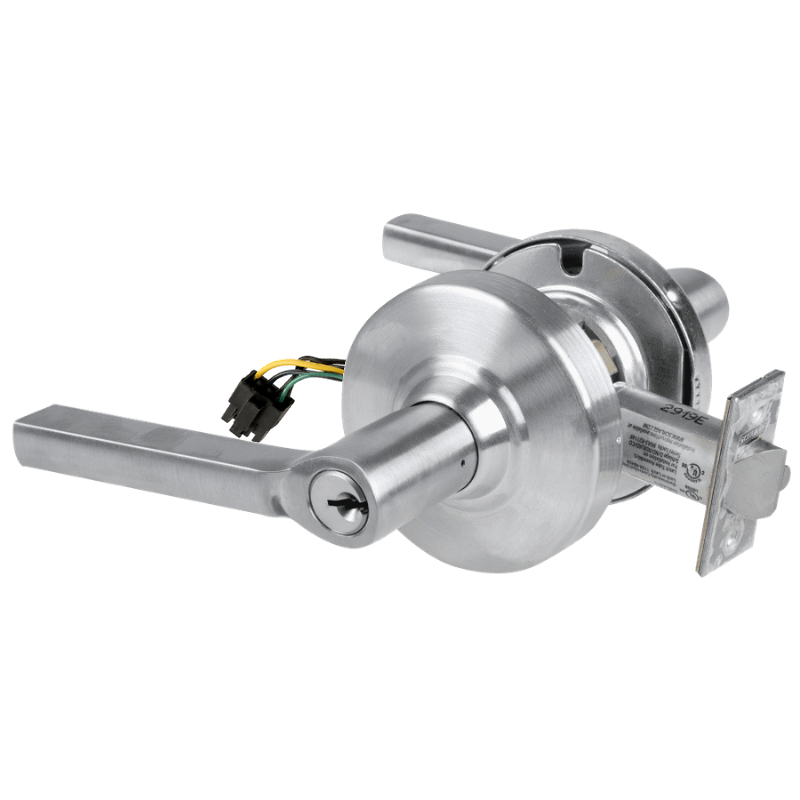

Schlage ND80PD-EU-LAT Cylindrical Electrified Storeroom Lock, Latitude Lever, 12-24V VDC, Fail Secure, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EU-LAT Cylindrical Electrified Storeroom Lock combines heavy-duty Grade 1 performance with electrified access control convenience for commercial openings. This non handed lock features the Latitude lever, 12-24V VDC operation, and fail secure functionality for controlled entry applications. It is supplied with the Schlage "C" keyway, keyed different cylindering, and [2] change keys for immediate key control. The lock is configured with a 2-3/4 inch backset and a 4-7/8 inch strike, making it a practical choice for facilities that need a durable Schlage ND Series cylindrical electrified storeroom lock with dependable security and code-compliant strength.

Features

• ND80PD-EU-LAT is a Schlage ND Series cylindrical electrified storeroom lock built for commercial-duty applications.
• The storeroom function keeps the outside lever rigid at all times except when electrically unlocked.
• Latitude lever trim provides a modern straight lever design.
• 12-24V VDC operation supports low-voltage electrified hardware applications.
• Fail secure operation keeps the outside lever locked during power loss.
• Schlage "C" keyway is included for standard Schlage keying compatibility.
• Keyed different cylindering provides a unique key combination for the lock.
• [2] change keys are included for day-to-day key operation.
• A 2-3/4 inch backset is provided for the specified door preparation.
• A 4-7/8 inch strike is included for frame compatibility.
• Grade 1 construction meets high-traffic commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80PD electrified storeroom function is designed for access-controlled openings where the outside lever remains locked until released by an electrical signal. In fail secure mode, the outside lever stays secure during a power failure, while the inside lever allows free egress at all times. This makes it well suited for security-sensitive commercial doors that still require safe exit.

• Outside lever locked until energized.
• Inside lever always unlocked for immediate egress.
• Fail secure.

Included Components

This configuration includes the Schlage "C" keyed different cylinder, [2] change keys, a 2-3/4 inch backset latch arrangement, and a 4-7/8 inch strike. The lock is supplied as a non handed cylindrical electrified lockset with Latitude lever trim.
