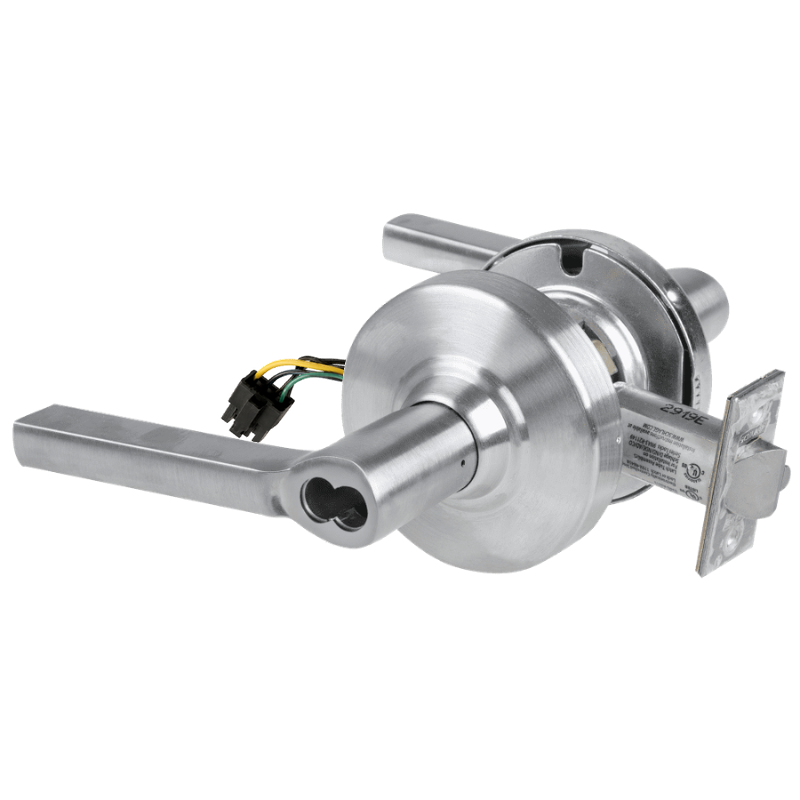

Schlage ND80JD-EU-LAT Cylindrical Electrified Storeroom Lock, Latitude Lever, 12-24V VDC, Fail Secure, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EU-LAT Cylindrical Electrified Storeroom Lock combines heavy-duty Grade 1 performance with the convenience of remote access control in a storeroom function. This lock features the Latitude lever trim, 12-24V VDC electrified operation, and fail secure functionality for controlled entry. It is configured for a Schlage FSIC full sized interchangeable core and is supplied less core for flexible keying requirements. Additional key specifications include a 2-3/4 inch backset, 4-7/8 inch strike, and non handed design for easier installation across a range of commercial door openings.

Features

• ND80JD-EU-LAT is a cylindrical electrified storeroom lock designed for commercial applications requiring access control and mechanical security.
• The Latitude lever provides a modern straight lever design within the Schlage ND Series platform.
• 12-24V VDC operation supports low-voltage electrified locking applications.
• Fail secure function keeps the outside lever locked during power loss while allowing authorized electrical release.
• Prepared for a Schlage FSIC full sized interchangeable core for flexible master keying and core management.
• Supplied less core so the interchangeable core can be furnished separately to match project keying requirements.
• The 2-3/4 inch backset fits standard commercial door preparations requiring this latch dimension.
• The 4-7/8 inch strike is included for proper frame alignment and latch engagement.
• Grade 1 construction meets demanding commercial durability and security requirements.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed to keep the outside lever rigidly locked at all times except when released by an electrical signal. In fail secure mode, the lock remains secure during a power interruption, while free egress is maintained from the inside. This makes it well suited for controlled openings that need dependable mechanical security with remote release capability.

• Outside lever is locked by outside lever cylinder. Entrance by key or by electrically unlocking outside lever momentarily. Inside lever always unlocked.
• Fail secure.
• ND80EU can be wired as either fail secure or fail safe.

Included Components

This lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. The 4-7/8 inch strike is included, and the non handed chassis supports installation without requiring handing-specific hardware.
