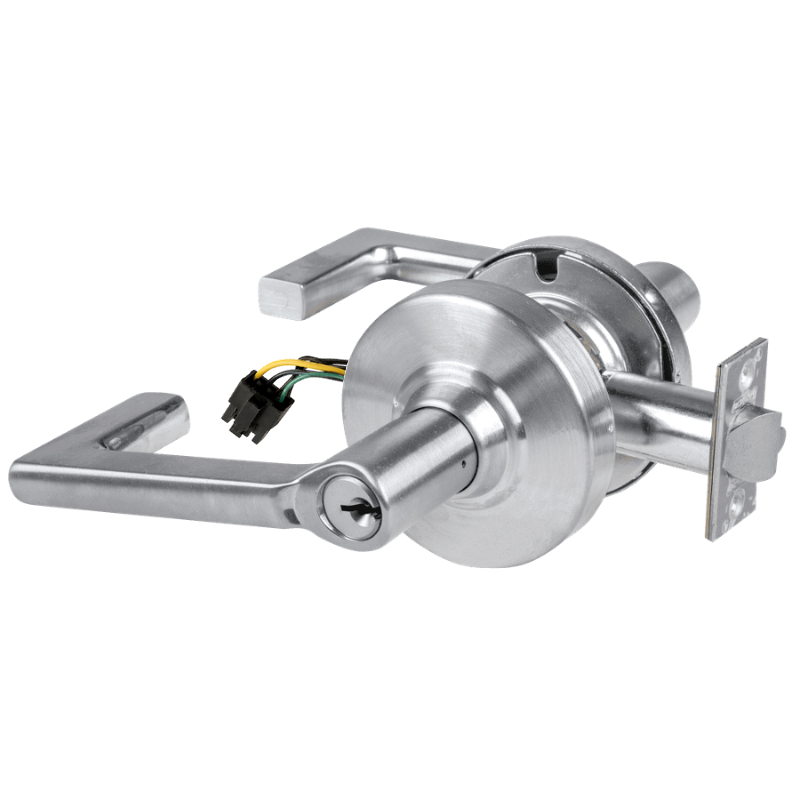

Schlage ND80PD-EU-LON Cylindrical Electrified Storeroom Lock, Longitude Lever, 12-24V VDC, Fail Secure, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EU-LON Cylindrical Electrified Storeroom Lock is a Grade 1 cylindrical lock built for demanding commercial openings that require remote access control and dependable mechanical security. This configuration includes the Longitude lever, 12-24V VDC operation, fail secure functionality, and the Schlage "C" keyway keyed different with [2] change keys. It is supplied with a 2-3/4 inch backset and a 4-7/8 inch strike, and its non handed design helps simplify installation on either door hand. As part of the ND Series, the ND80PD-EU-LON combines heavy-duty performance with electrified storeroom function for high-traffic applications.

Features

• ND80PD-EU-LON electrified cylindrical storeroom lock for commercial access control applications.
• Longitude lever trim provides a modern lever design within the Schlage ND Series platform.
• Operates on 12-24V VDC for low-voltage electrified locking setups.
• Fail secure operation keeps the outside lever locked during power loss while maintaining key access.
• Includes Schlage "C" keyway keyed different for individual keying at the opening.
• Supplied with [2] change keys.
• Configured with a 2-3/4 inch backset.
• Includes a 4-7/8 inch strike.
• Grade 1 construction meets heavy-duty commercial performance requirements.
• Non handed design allows installation on right-hand or left-hand doors.

Functional Details

The ND80PD electrified storeroom function is designed for openings that need electric release of the outside lever while preserving secure mechanical operation. In fail secure mode, the outside lever remains locked when power is removed, while authorized access can be granted electrically when power is applied. This makes it suitable for controlled openings where security during power interruption is required.

• Outside lever is normally locked.
• Applying power unlocks outside lever momentarily or for as long as power is applied.
• Inside lever always free for immediate egress.
• Outside lever remains locked upon loss of power.
• Latchbolt operated by lever from either side unless outside lever is locked by electric control.

Included Components

This lock is furnished with the Schlage "C" keyway, keyed different cylinder, [2] change keys, a 2-3/4 inch backset, and a 4-7/8 inch strike. The non handed chassis supports flexible installation without requiring handing changes.
