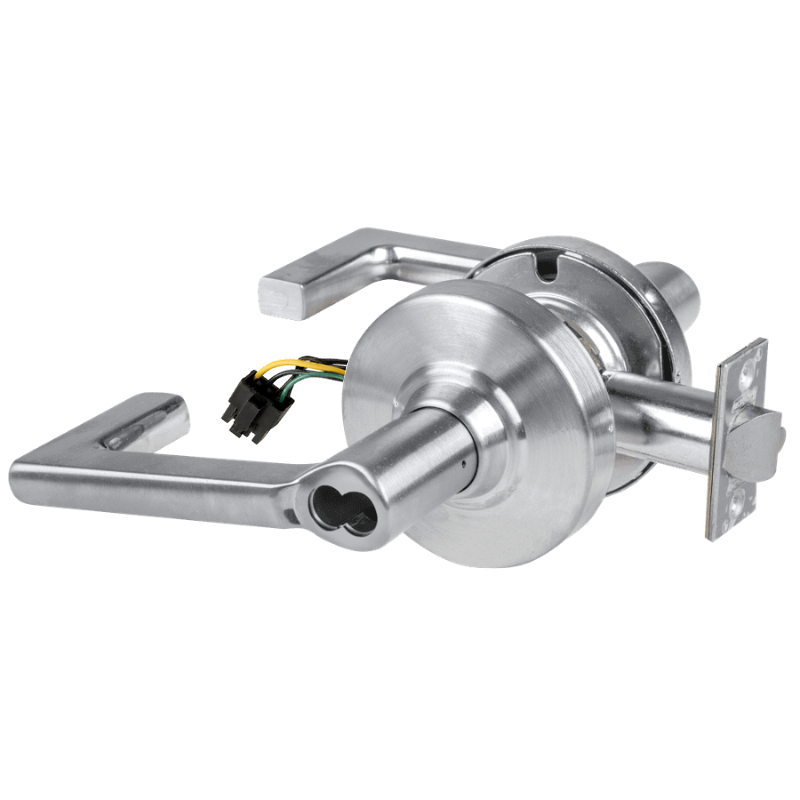

Schlage ND80JD-EU-LON Cylindrical Electrified Storeroom Lock, Longitude Lever, 12-24V VDC, Fail Secure, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EU-LON Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lock built for commercial openings that require controlled access and dependable performance. This configuration includes the Longitude lever, 12-24V VDC operation, and fail secure function for electrified access control applications. It is prepared for a Schlage FSIC full sized interchangeable core and ships less core, making it a practical choice for facilities using interchangeable key systems. The lock also includes a 2-3/4 inch backset, 4-7/8 inch strike, and non handed design for flexible installation across a wide range of door applications.

Features

• ND80JD-EU-LON is a cylindrical electrified storeroom lock designed for commercial access control openings.
• The Longitude lever provides a modern lever design within the Schlage ND Series platform.
• 12-24V VDC operation supports low-voltage electrified locking applications.
• The fail secure function keeps the outside lever locked when power is removed.
• This lock is prepared for a Schlage FSIC full sized interchangeable core for facilities using interchangeable core systems.
• The unit ships less core so the core can be supplied separately to match existing keying requirements.
• A 2-3/4 inch backset is included for standard commercial door preparation.
• The 4-7/8 inch strike is included for compatible frame installation.
• Grade 1 construction provides high-level durability for demanding institutional and commercial use.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed for openings where the outside lever must remain locked during normal use and unlocked only when power is applied. In fail secure mode, loss of power keeps the outside lever secure, while authorized electrical control allows momentary access. The inside lever remains free for safe egress.

• Outside lever is normally locked.
• Outside lever is unlocked by electric power. Inside lever always unlocked.
• Inside lever retracts latchbolt at all times.
• Latchbolt retracted by key in outside lever when in the unlocked position.
• Auxiliary latch deadlocks latchbolt.

Included Components

This configuration includes the lock prepared for a Schlage FSIC full sized interchangeable core, a 2-3/4 inch backset, and a 4-7/8 inch strike. The cylinder core is not included, as this unit is supplied less core.
