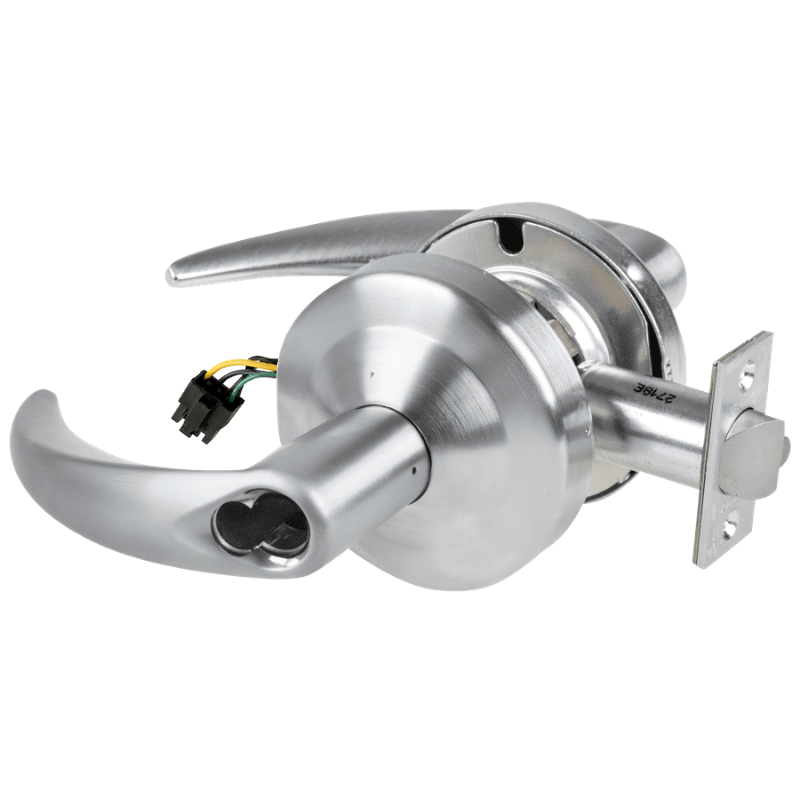

Schlage ND80JD-EU-OME Cylindrical Electrified Storeroom Lock, Omega Lever, 12-24V VDC, Fail Secure, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EU-OME Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 cylindrical lock built for demanding commercial openings that require controlled access and dependable performance. This configuration includes the Omega lever, 12-24V VDC operation, and fail secure functionality for electrified access control applications. It is prepared for a Schlage FSIC full sized interchangeable core and ships less core, making it suitable for facilities using interchangeable key systems. This non handed lock is supplied with a 2-3/4 inch backset and a 4-7/8 inch strike, giving you a complete Schlage ND Series solution for secure storeroom use.

Features

• Schlage ND80JD-EU-OME cylindrical electrified storeroom lock is designed for commercial applications requiring remote access control and secure storeroom function.
• Omega lever trim provides a durable lever design used across Schlage ND Series cylindrical lock configurations.
• 12-24V VDC input supports low-voltage electrified locking applications.
• Fail secure operation keeps the outside lever locked when power is removed.
• Prepared for a Schlage FSIC full sized interchangeable core to support interchangeable core key systems.
• Less core configuration allows the appropriate Schlage FSIC core to be supplied separately.
• 2-3/4 inch backset fits standard commercial door preparations requiring that backset dimension.
• 4-7/8 inch strike is included for compatible frame preparation.
• Grade 1 construction meets high-use commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80JD-EU electrified storeroom function is intended for openings that need an outside lever controlled by electricity while maintaining safe, predictable mechanical operation. In fail secure mode, the outside lever remains locked during a power loss, while authorized access can be granted when power is applied. The inside lever remains available for free egress.

• Electrically unlocks outside lever.
• Inside lever always unlocked.
• Outside lever remains locked until electric current is applied.
• Outside lever stays unlocked while electric current is applied.
• Latchbolt retracted by key in outside lever or by inside lever.
• Inside lever always free for immediate egress.

Included Components

This Schlage ND80JD-EU-OME configuration includes the cylindrical electrified lock body, Omega lever trim, preparation for a Schlage FSIC full sized interchangeable core, a 2-3/4 inch backset, and a 4-7/8 inch strike. It is supplied less core, so the interchangeable core must be ordered separately.
