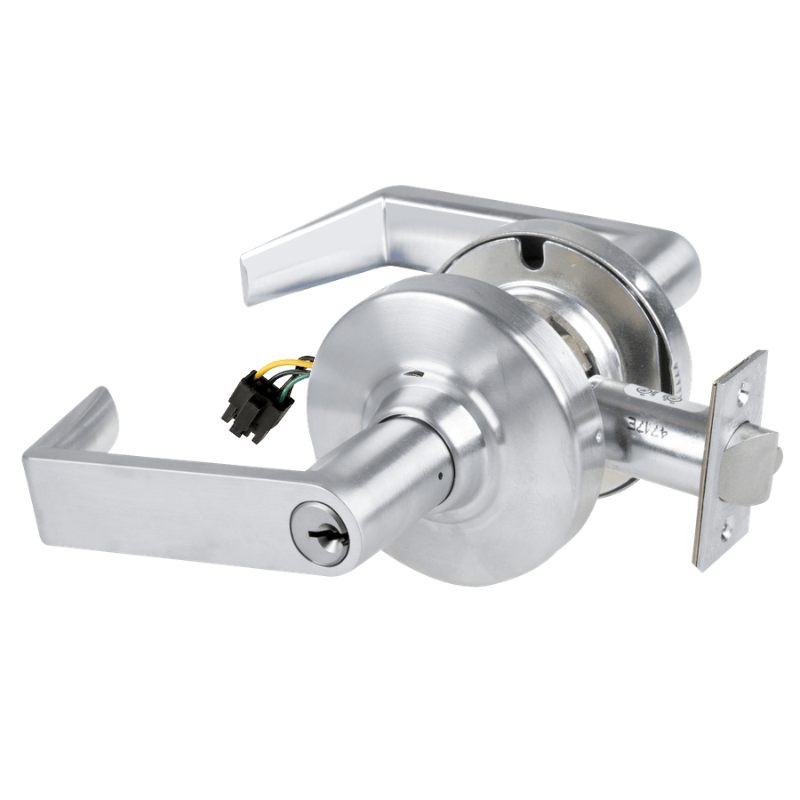

Schlage ND80PD-EU-RHO Cylindrical Electrified Storeroom Lock, Rhodes Lever, 12-24V VDC, Fail Secure, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EU-RHO Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lockset built for high-traffic commercial openings that require dependable access control and keyed security. This configuration includes the Rhodes lever, 12-24V VDC electrified operation, fail secure function, and Schlage "C" keyway keyed different with [2] change keys. It is supplied with a 2-3/4 inch backset and 4-7/8 inch strike, and the non handed design helps simplify installation and field preparation. As part of the ND Series, this cylindrical electrified storeroom lock is engineered for strength, durability, and consistent performance in demanding applications.

Features

• ND80PD-EU-RHO is a cylindrical electrified storeroom lock designed for controlled access openings.
• The Rhodes lever trim provides a clean, durable lever design for commercial environments.
• Electrified operation is rated for 12-24V VDC power input.
• The fail secure function keeps the outside lever locked during power loss.
• This lock is supplied with the Schlage "C" keyway.
• Keyed different cylinder configuration provides a unique keying combination.
• Includes [2] change keys for day-to-day keyed operation.
• The 2-3/4 inch backset supports standard commercial door preparation requirements.
• The 4-7/8 inch strike is included for compatible frame preparation.
• Grade 1 construction meets heavy-duty commercial performance requirements.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

The ND80PD electrified storeroom function is designed for openings that need remote access control while maintaining secure exterior locking. In fail secure mode, the outside lever remains locked when power is removed, while authorized electrical input allows lever operation as specified by the electrified function. This makes it well suited for controlled commercial door applications where security during power interruption is important.

• Outside lever is locked by default.
• Applying power unlocks outside lever.
• Inside lever always unlocked for immediate egress.
• Fail secure.

Included Components

This configuration includes the ND80PD-EU lock body with Rhodes lever trim, Schlage "C" keyed different cylinder, [2] change keys, 2-3/4 inch backset, and 4-7/8 inch strike. The non handed design helps reduce stocking complexity and supports flexible installation.
